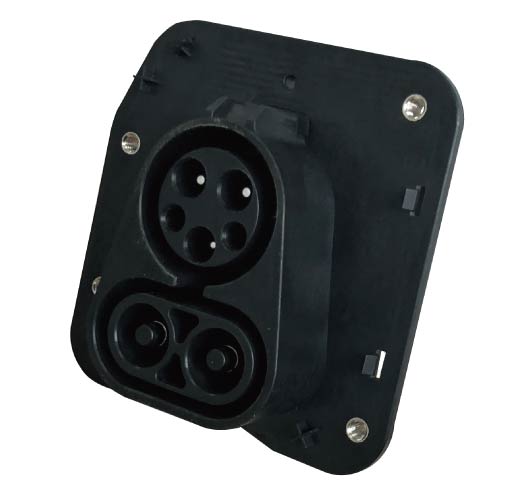

SAE standard AC pile end charging socket combo type

  • Model: KLS15-SAE04
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Features
1. Charging socket conforms to SAE J1772-2016 standard
2. Concise appearance, support back installation
3. Safety pins insulated head design to prevent accidental direct contact with staff
4. Overall product protection level 3S,Back protection class IP65
Mechanical properties
1. Mechanical life : no-load plug in/pull out>10000 times
Electrical Performance
1. DC input: 80A/150A/200A  600V DC
2. AC input: 16A/32A/60A  240/415V AC
3. Insulation resistance:>2000MΩ(DC1000V)
4. Terminal temperature rise:<50K
5. Withstand Voltage:3000V
6. Contact Resistance: 0.5mΩ Max
Applied Materials
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin:Copper alloy,silver + thermoplastic on the top
Environmental performance
1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model Rated current Cable specigication
KLS15-SAE04-80S16 80A/16A 2*5AWG+1*8AWG+2*14AWG+2*20AWG
KLS15-SAE04-80S32 80A/32A 2*5AWG+1*8AWG+2*14AWG+2*20AWG
KLS15-SAE04-150S16 150A/16A 2*1AWG+1*6AWG+2*14AWG+2*20AWG
KLS15-SAE04-150S32 150A/32A 2*1AWG+1*8AWG+2*14AWG+2*20AWG
KLS15-SAE04-150S60 150A/60A 2*1AWG+1*8AWG+2*14AWG+2*20AWG
KLS15-SAE04-200S16 200A/16A 2*2/0AWG+1*6AWG+2*14AWG+2*20AWG
KLS15-SAE04-200S32 200A/32A 2*2/0AWG+1*6AWG+2*10AWG+2*20AWG
KLS15-SAE04-200S60 200A/60A 2*2/0AWG+1*6AWG+2*6AWG+2*20AWG
