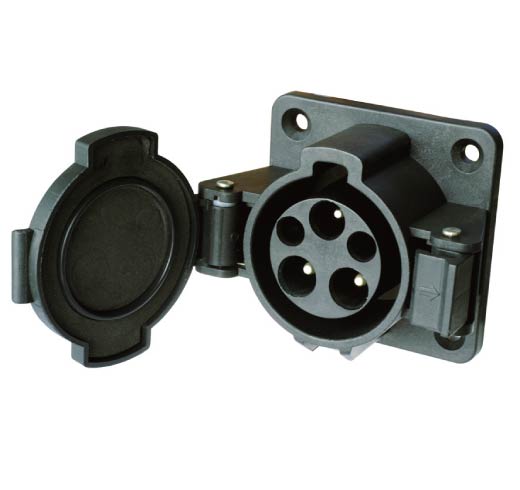

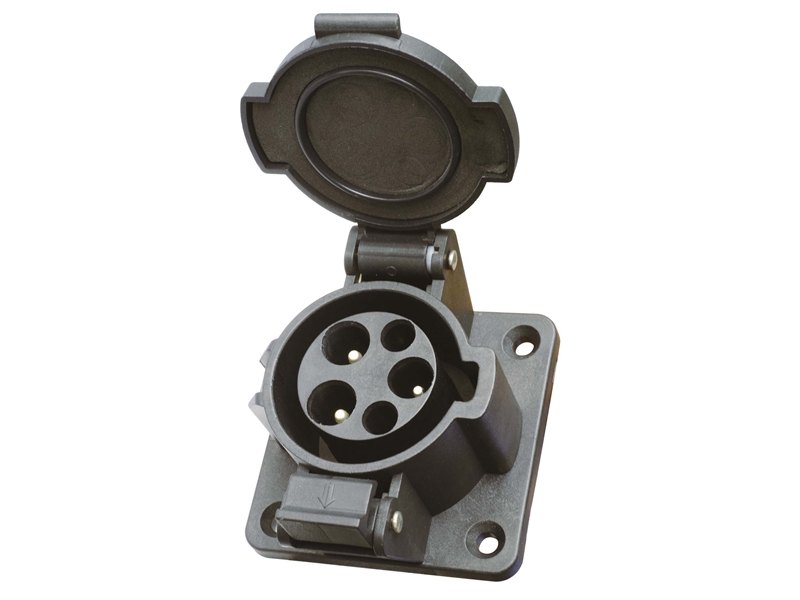

SAE standard AC pile end charging socket

  • Model: KLS15-SAE02
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Features
1. Meet SAE J1772-2010 standard
2. Nice appearance,left flip protection,support front installation
3. Reliability of materials, antiflaming,pressure -resistant,abrasion resistance,impact

resistance and high oil

4. Excellent protection performance,protection grade IP44(working condition)
Mechanical properties
1. Mechanical life : no-load plug in/pull out>10000 times
Electrical Performance
1. Rated current:16A/32A/40A/50A
2. Operation voltage: 240V
3. Insulation resistance:>1000MΩ(DC500V)
4. Terminal temperature rise:<50K
5. Withstand Voltage:2000V
6. Contact Resistance: 0.5mΩ Max
Applied Materials
1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
2. Pin:Copper alloy,silver plating
Environmental performance
1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model Rated current Cable specification
KLS15-SAE02-16 16A 3 X 2.5mm² + 2 X 0.75mm²
KLS15-SAE02-32 32A 3 X 6mm² + 2 X 0.75mm²
KLS15-SAE02-40 40A 2 X 8AWG + 1 X 10AWG + 1 X 16AWG
KLS15-SAE02-50 50A 2 X 8AWG + 1 X 10AWG + 1 X 16AWG
