Russia Standard Circular Connector

  • Model: KLS15-RCS03
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

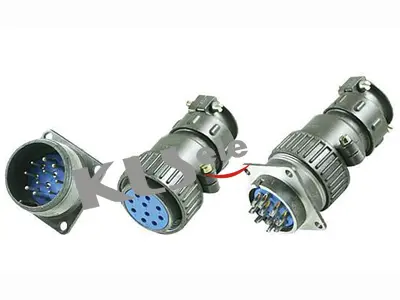

Circular Connector With Russia Standard P Type
P type common round linker, accords with SJ/T1049694, 8 varieties of P16, P60 screw thread, more than 1800 pieces specification, include: vertical, curve, shield, non-shield, airproof, and non-airproof, etc.
the diameter of contact pieces is Φ 1.5 、Φ 2.5 、Φ 3.5 、Φ 5.5mm, gilt and silver-plated.

ORDER INFORMATION:
KLS15-RCS03-P-20-4 STK/ZJ

P-   P series connector
20-  Shell size: 16,20,28,32,40,48,55
4-    Number of Pins:2,3,4,5,6,7,8,9,10,12,14,15,16,20,26,30,35
STK-
Straight Plug Socket   RTK- Right Plug Socket    ZJ-Flange Receptacle Pin

Technical characteristics
Relative humidity:it can reaches 93% at 40ºC
Ambient temperature: -60ºC~+50ºC
Vibration:10 ~ 200Hz ,95m/S2
Insulated resistance:normal temperature: 20MΩ Min.
Wet heat: 20MΩ Min.
Life duration: 500cycles
