RS232 Cable

Model: KLS17-0635-FC
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details

Product Description:

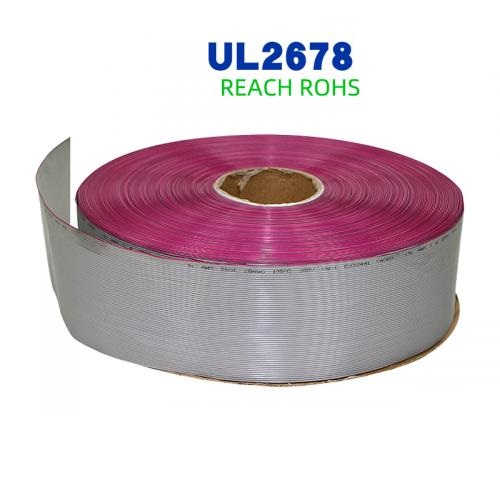

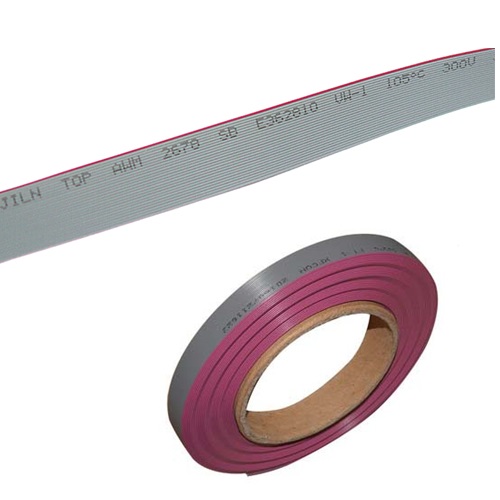

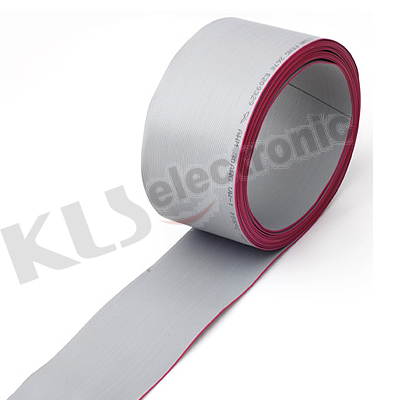

UL STYLE: UL2678

Rate temperature: -40°C ~ 125°C

Rate voltage: 150V

Flame test: VW-1 & CSA FT1,FT2

Conductor: 30AWG Tinned Copper

Insulation: TPE 125°,Halogen Free; Color: Gray

ELECTRONIC CHARACTERISTICS:

Spark test: 1500V

Dielectric strength test: 1.5KV in 15 sec. Min.

Conductor resistance: 377Ω/km Max.

Insulation resistance: 0.75MΩ/km Min.
