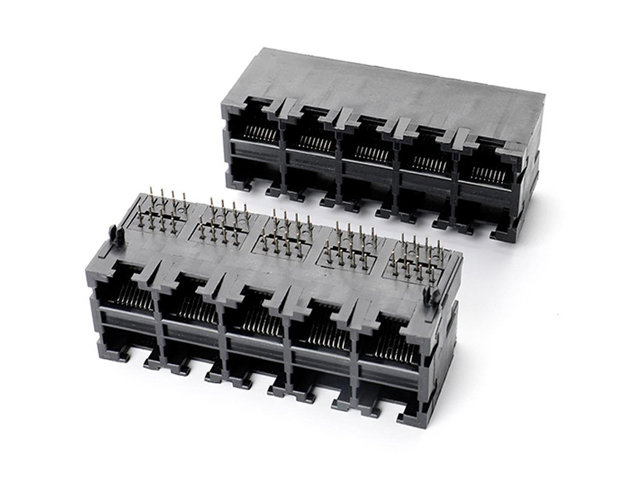

RJ45-8P8C 2×5 jack

  • Model: KLS12-103-8P8C-2x5
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Housing:    PBT+Glass Filled Polyester
Flammability Rating : UL94V-0
Contacts:  Phosphor Bronze ∅0.46mm
Plating:     Gold Plating

Electrical:
Voltage Rating:           125VAC
Current Rating:           1.5A
Contact Resistance:    30mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Strength:    1000VAC Rms 50Hz,1 Min.
Durability:                  600 cycles Min.
Operation Temperature:-40°C~+70°C
