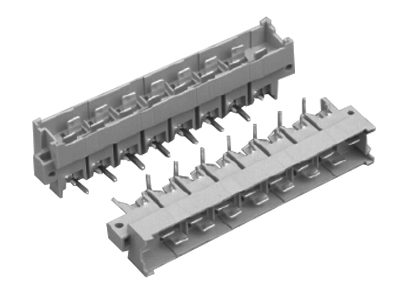

Right Angle Male Type H15 Connectors

  • Model: KLS1-125-4-159-20-30
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Parameter:
Technial Data:EURO DIN 41612: Signal
Housing: PBT & 30%Class Fiber(UL94V-0)
Cintact: Male:Brass
Female:Phosphor Bronze
Operating temperature: -55℃~ + 105℃
Contact resistance:8m(ohm) max.
Insulator resistance:1000M(ohm)min.
Current rating: 15AMP
Withstanding voltage:AC 3100V for 1 minute
Insertion force: 90N Max.
Withdrawal force:0.2N/Pin min
Contact Rating: Ag/Ni,Plating
