RCA Phono Plug
- Product Details

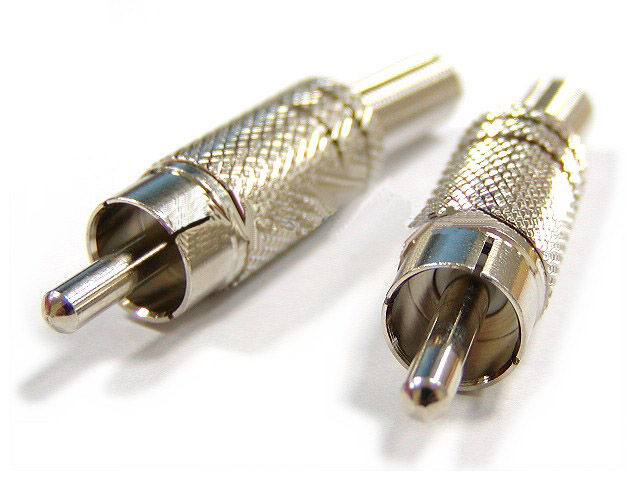

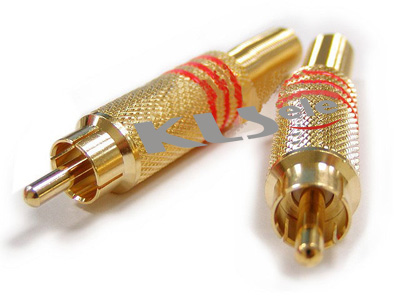

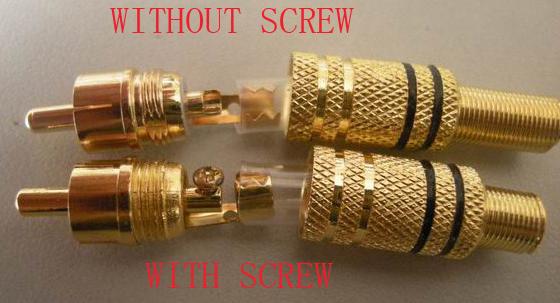

RCA Phono Plug Connector
| Phono (RCA) Plug | Mono,Phono (RCA) Plug |
| Plug/Mating Plug Diameter | 3.20mm ID |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder |
| Shielding | Unshielded |
| Cable O.D | 5.8mm,6.0mm,6.5mm |
| Plating | Nickel,Gold |
| Packaging | Bulk |
| Contact Material | Brass |
| Operating Temperature | -40°C ~ 85°C |
| Color | Black,Red…… |
