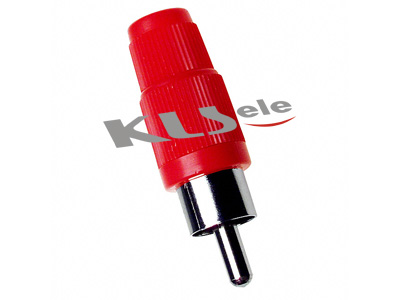

RCA Phono Plug

  • Model: KLS1-RCA-PM02
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
RCA Phono Plug Connector
Connector Type Phono (RCA) Plug
Gender Male
Signal Lines Mono
Plug/Mating Plug Diameter 3.20mm ID, 9.00mm OD (RCA)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Shielding Unshielded
Size Ø12x29mm
Color – Contact Silver
Packaging Bulk
Contact Material Brass
Contact Material – Plating Nickel

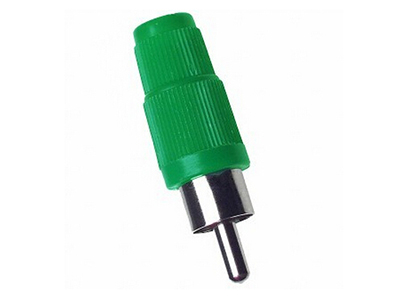

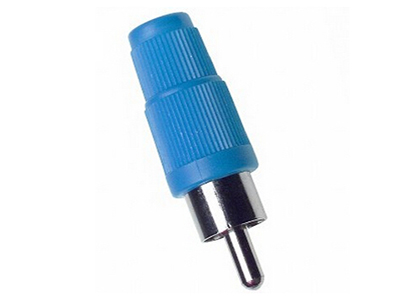

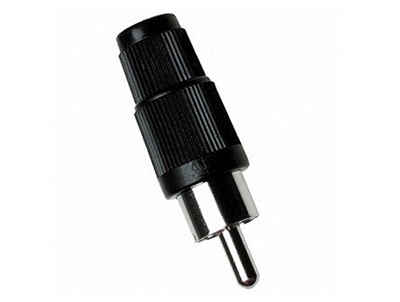

Housing Color Black (Customizable Blue,Red,Green,Yellow,White)
Housing Material Thermoplastic
Operating Temperature -20°C ~ 85°C
