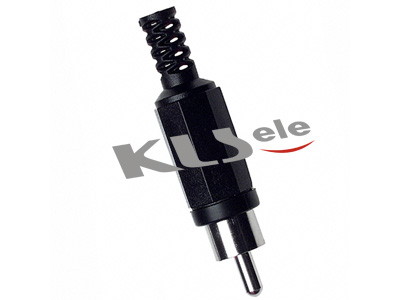

RCA Phono Plug
- Product Details
RCA Phono Plug Connector
| Connector Type | Phono (RCA) Plug |
| Gender | Male |
| Signal Lines | Mono |

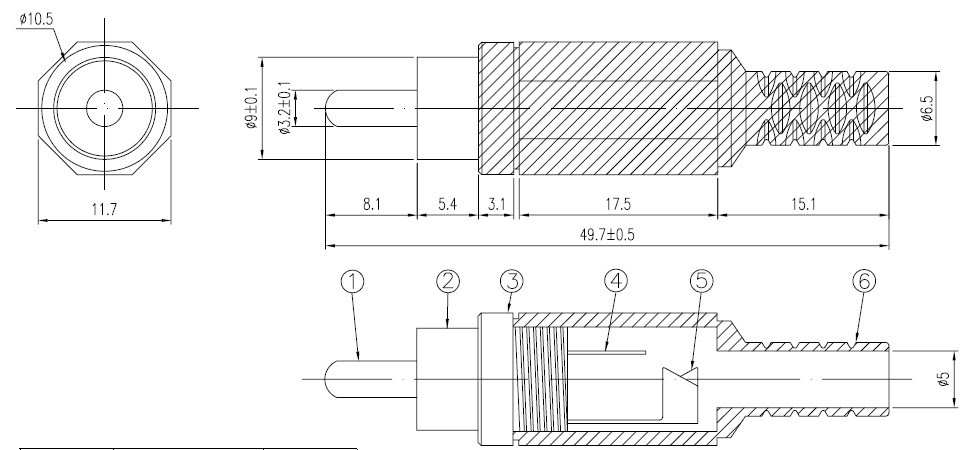

| Plug/Mating Plug Diameter | 3.20mm ID, 9.00mm OD (RCA) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | Strain Relief |
| Color – Contact | Silver |
| Packaging | Bulk |
| Contact Material | Brass |
| Plating | Nickel |

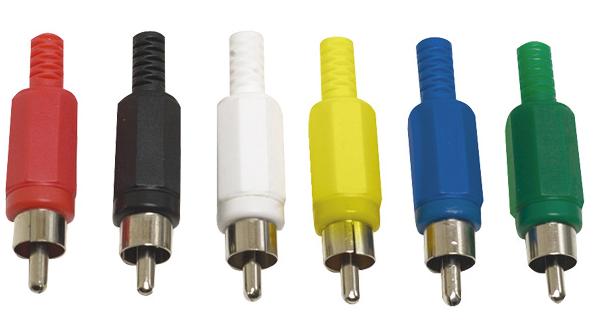

| Housing Color | Black (Customizable Blue,Red,Green,Yellow,White) |
| Housing Material | Thermoplastic |
| Operating Temperature | -20°C ~ 85°C |
