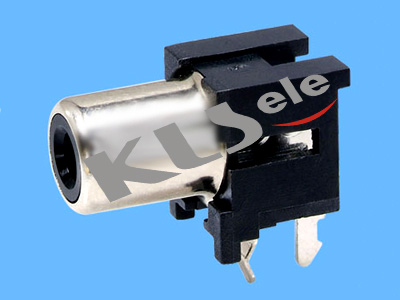

RCA Jack Connector PCB Mount

Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance : 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature : -25ºC~+85ºC
Materials:
Housing : PBT UL94V~0
Terminal 1 : C.R.Steel
Terminal 2 : Copper Alloy
Terminal 3 : Brass

KLS1-RCA-102A.pdf
