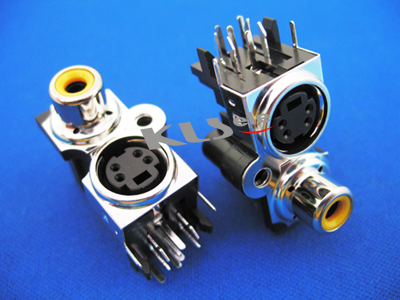

RCA Jack + Mini din jack

Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance : 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature : -25ºC~+85ºC
Materials:
Sealed Plate : Steel
Earth Fitting : Brass
Terminal : Brass
Housing : PBT UL94V~0
Washer : ABS UL94V~0
Outer Contact : Brass
Ground Contact : Brass
Center Contact : Brass

KLS1-RCA-204.pdf
