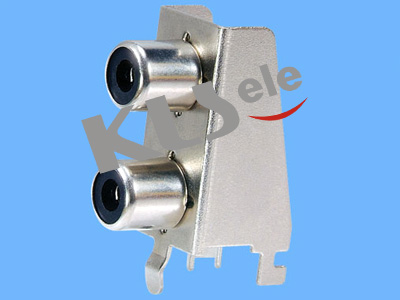

RCA Jack Connector
- Product Details
RCA Jack Connector
Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance : 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature : -25ºC~+85ºC
Materials:
Barrel : Steel
Insulator : PBT UL94V~0
Insert Ring : ABS UL94V~0
Center Pin : Brass
Frame : Steel
