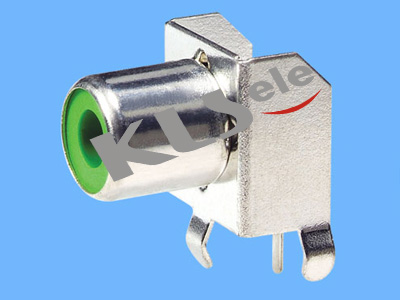

RCA Jack Connector
- Product Details
RCA Jack Connector
Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance : 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature : -25ºC~+85ºC
Materials:
Insulator : PBT UL94V~0
Body : Steel
Terminal : Brass
