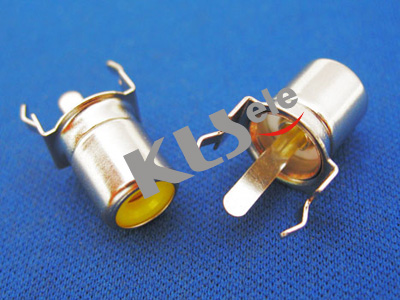

RCA Jack Connector

  • Model: KLS1-RCA-106
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

RCA Jack Connector

Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance : 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature : -25ºC~+85ºC
Materials:
Insulator : PBT UL94V~0
Insert Ring : ABS UL94V~0
Certer Pin : Brass
Bracket : C.R.S.
Barrel : C.R.S
