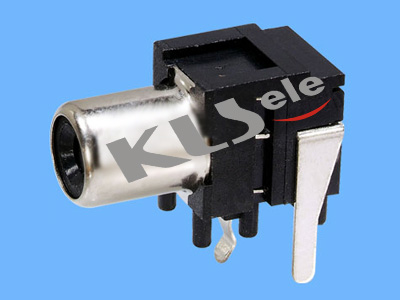

RCA Jack Connector

Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance : 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature : -25ºC~+85ºC
Materials:
Housing : PBT UL94V~0
Terminal 1 : C R Steel
Terminal 2 : Copper Alloy
Terminal 3 : Brass
Terminal 4 : Copper Alloy

KLS1-RCA-103.pdf
