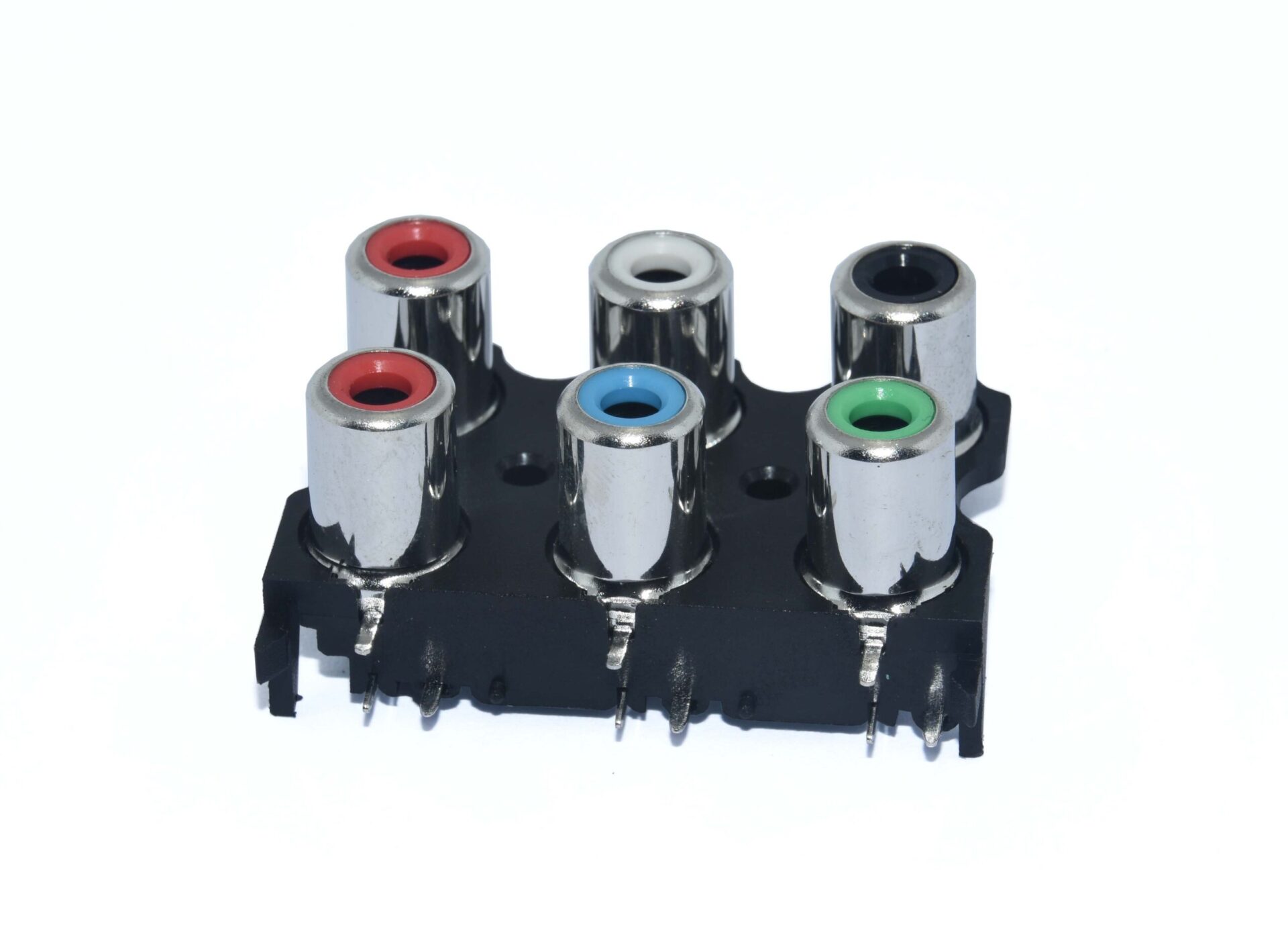

RCA Jack Connector 2X3

  • Model: KLS1-RCA-614
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Technical parameters:
Contact resistance: 30mΩ, max
Insulation resistance: 100MΩ, min
Rated Load: DC 50V 0.5A
Withstand voltage: 500V AC / 1 minute/50Hz
Insertion Force :5-30 N
Life: 5000 times
Operating Temperature: -25ºC ~ 70ºC

Material:
Sealed Plate : Steel
Terminal : Brass
Outer Contact : Brass
Washer : PBT UL94V~0
Housing : PBT UL94V~0
