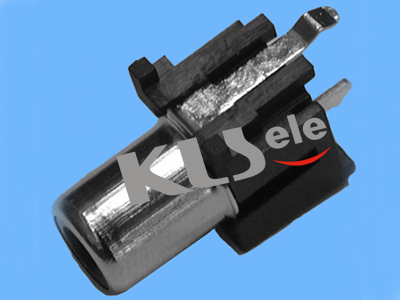

RCA Jack Connector
- Product Details
RCA Jack Connector
Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance: 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature: -25ºC~+85ºC
Materials:
Housing: PBT UL94V~0
Terminal 1: C R Steel
Terminal 4: Brass
