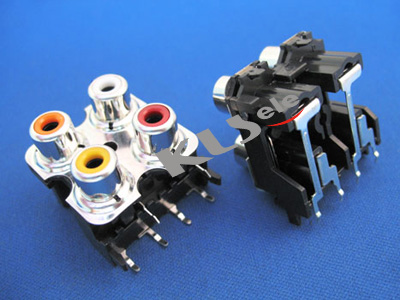

RCA Jack Connector

Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance : 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature : -25ºC~+85ºC
Materials:
Sealed Plate : Steel
Terminal : Brass
Outer Contact : Brass
Cover : ABS UL94V~0
Washer : PBT UL94V~0
Housing : PBT UL94V~0

KLS1-RCA-401.pdf
