RCA Jack

Model: KLS1-RCA-306
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

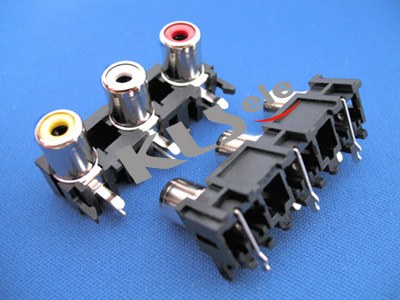

RCA Jack Connector

Electrical Specification:
Contact resistance : 30mΩ Max
Insulation resistance : 50MΩ Min at DC 500V
Withstand voltage : AC 500V(50Hz) 1min
Operating Temperature : -25ºC~+85ºC
Materials:
Terminal : Brass
Shield Pin : Steel
Washer : PBT UL94V~0
Housing : PBT UL94V~0

PDF

KLS1-RCA-306.pdf
