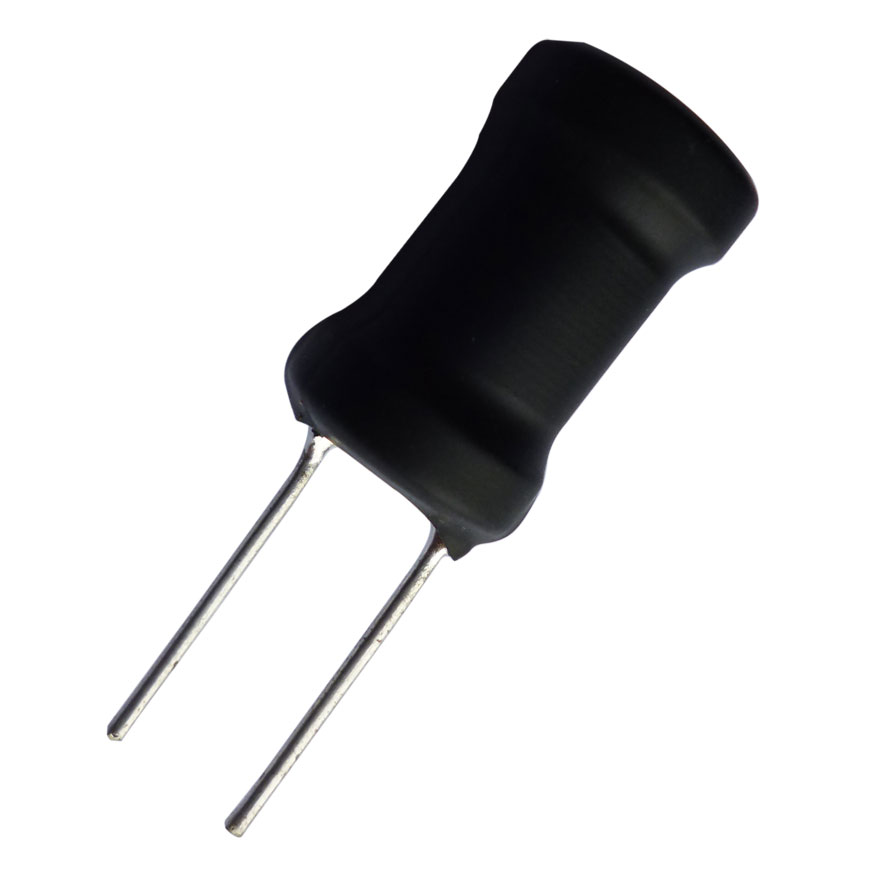

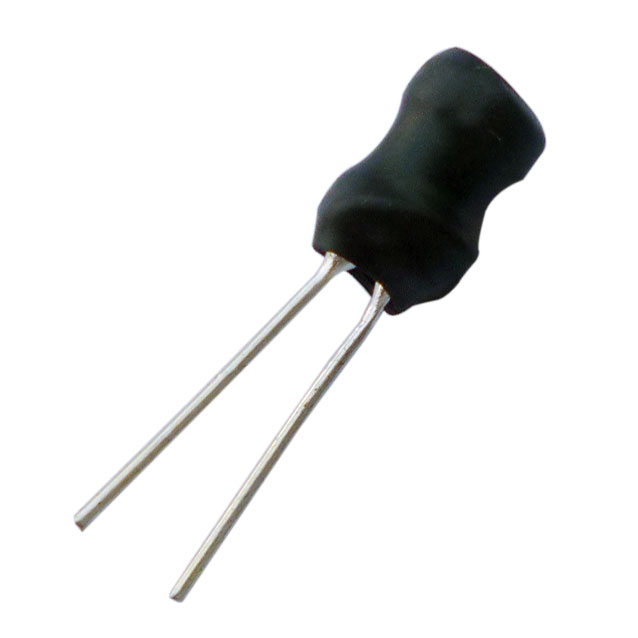

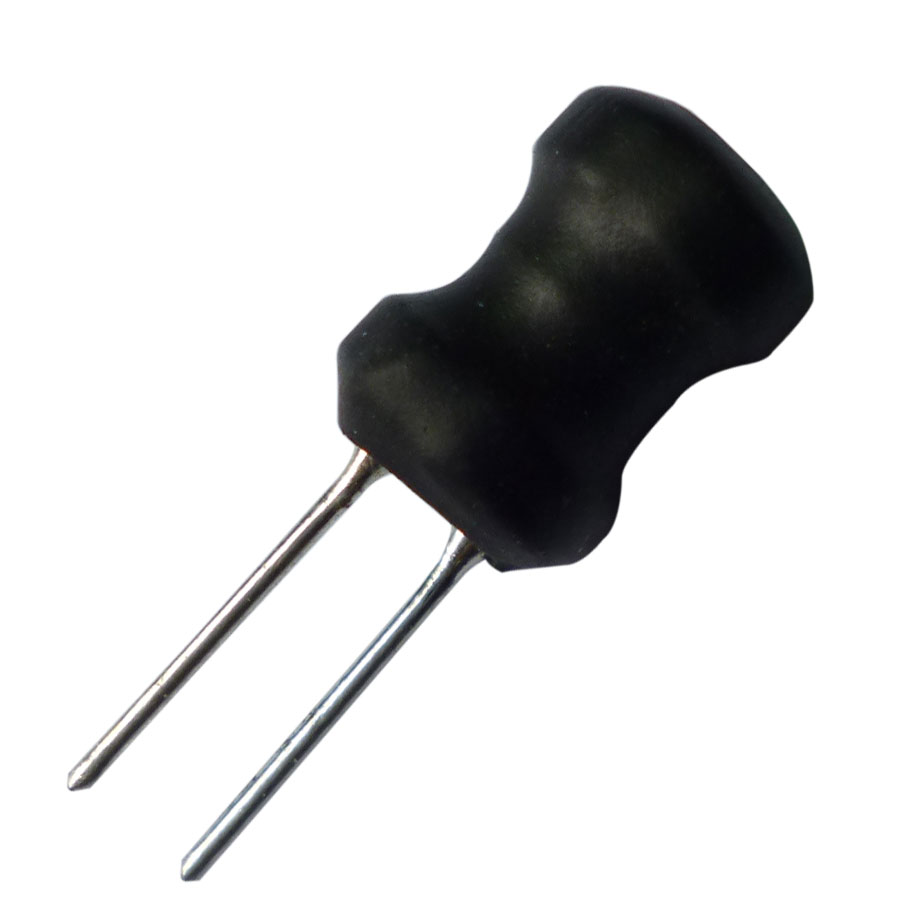

Radial UL Tube Power Inductor
- Product Details
Features
Ideal as a choke coil for noise filtering and DC to DC converter application.
Covered with PVC or UL shrink tubing
Excellent characteristics for high Q
Applications
TV and Audio equipment
Buzzers and Alarm systems
Switching power supplies
Systems requiring Board and high Q.
Other noise filters.
Test Equipment and Conditions
Inductance & Q are measured with HP-4284A or equiv.
SRF is measured with ML-2770 or equiv.
DCR is measured with CH-502A or equiv.
Rated DC current is measured with HP-42841A or equiv.

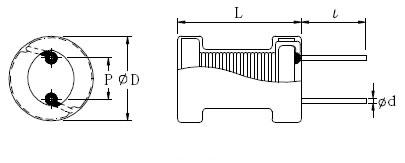

| P/N | D(Max) | L(Max) | l(±2mm) | d ± 0.05 | P ± 0.5 |
| PK0406 | 5.5 | 8.0 | 15.0 | 0.50 | 2.0 |
| PK0608 | 7.2 | 9.5 | 15.0 | 0.60 | 3.0 |
| PK0707 | 8.0 | 9.0 | 15.0 | 0.60 | 5.0 |
| PK0865 | 8.3 | 7.5 | 15.0 | 0.60 | 5.0 |
| PK0810 | 10.0 | 13.0 | 15.0 | 0.65 | 5.0 |
| PK1010 | 11.0 | 11.5 | 15.0 | 0.55 | 5.0 |
| PK1016 | 10.0 | 16.0 | 15.0 | 0.75 | 5.0 |
