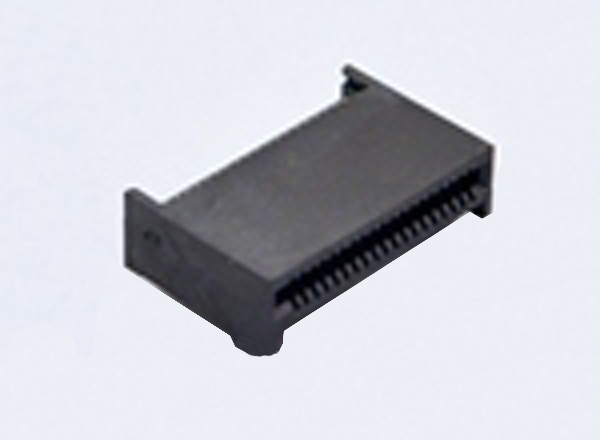

QSFP+ 38Pos SMD Connector 15U Gold

  • Model: KLS12-QSFP+01
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

1.Material :
HOUSING: HIGH TEMERATURE LCP, BLACK, UL 94 V-0 FLAME RETARDANT.

2. TERMINAL :
NICKEL COPPER ALLOY

PLATING SPEC AS BELOW:
OPTION
CONTACT AREA PLATE NICKEL 2.54um MIN, PLATE Gold 0.76um MIN
SOLDER AREA PLATE NICKEL 2.54um MIN, PLATE MATT TIN 2.54~5.09um

3. ELELCTRICAL CHARACTERISTICS :
CONTACT CURRENT RATING: 0.5AMPERE
VOLTAGE RATING: 30VAC
CONTACT RESISTACE: 40 MILLOHMS MAX
DIELECTRIC WITHSTANDING VOLTAGE: 300VDC

4. ENVIRONMEENT :
OPERATION TEMPERATURE: -20° C ~ 85° C
