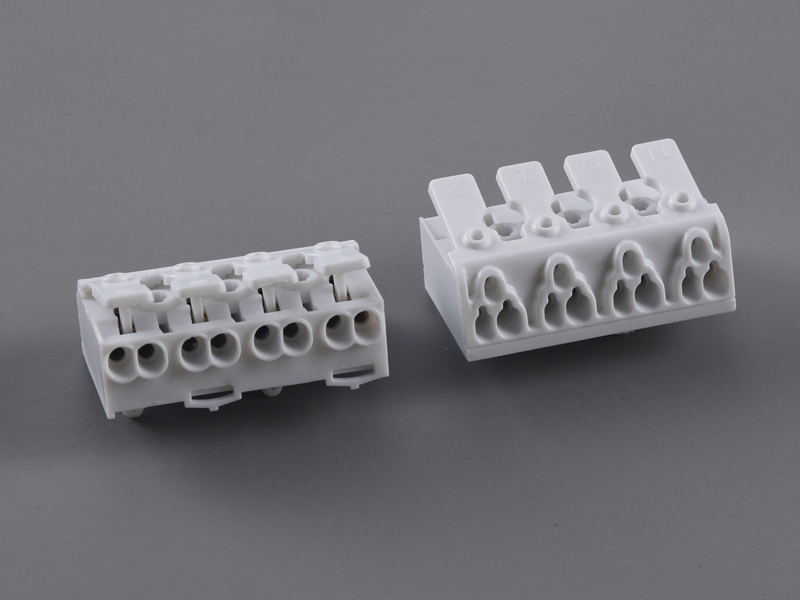

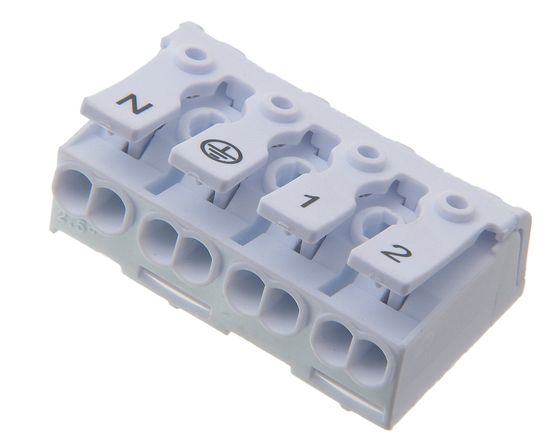

PUSH wire Connector, 2.5mm², 4 poles
- Product Details
Electrical :
Rated Voltage: 450V(IEC/EN)/300V(UL)
Rated Current: 16A
Contact resistance: 20 mΩ
Insulation resistance: 5000MΩ/DC1000V
Withstanding voltage : AC2500V/1 min
Cross Section: Solid conductor & Stranded conductor
A holes: 0.5-2.5mm²/14-20AWG
B holes: 0.5-1.5mm²/16-20AWG
C holes: 0.5-2.5mm²/14-20AWG
Materials
Insulation Materials: PA 66,WHITE,UL94V-2
Contact: Copper,Nickel Plated
Wire guard : Stainless steel
Number of poles: 4 poles
Strip length : 8-10mm
Operating Temperature: -40°C~+105°C
