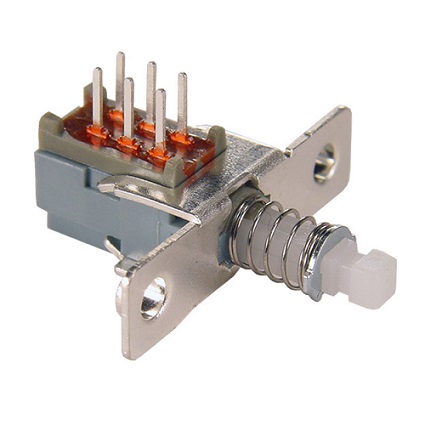

Push Switch 2P2T
- Product Details
Push Switch 2P2T
SPECIFICATION:
Rating: 0.1A 30V DC
PIN Pitch: 2.5mm
Operating Force: 230 ± 50gf
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 50MΩ Max.
Withatand Voltage: AC 250 V 1 Minute
Operating Temperature: -25oC ~ +70oC
Mechanical Life: 30,000 cycles
Electrical Life: 10,000 cycles
PIN Pitch: 2.5mm
Operating Force: 230 ± 50gf
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 50MΩ Max.
Withatand Voltage: AC 250 V 1 Minute
Operating Temperature: -25oC ~ +70oC
Mechanical Life: 30,000 cycles
Electrical Life: 10,000 cycles
FUNCTION:
L = Lock Type
N = Non Lock Type
L = Lock Type
N = Non Lock Type
