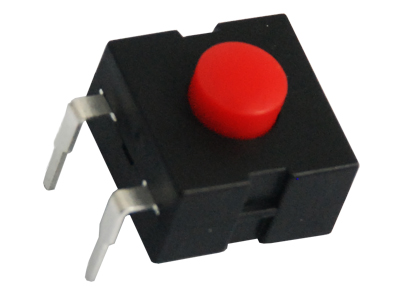

Push Button Switches

  • Model: KLS7-KAN8F-213
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical:
1.Rated load:0.5A 50V DC
2.Contact Resistance:≤100mΩ
3.Insulation Resistance:≥100MΩ
4.Withstand Voltage:500V AC 1minute
5.Actuating Force:750g±50g
6.Electrically Life:≥50000 cycles
7.Environment temperature:-40ºC~+70ºC

Materials:
1. Base: POM
2. Cover:POM
3.Upper teeth:POM
4.Bottom teeth:POM
5.The needle:H62 brass band Y1 = 0.38mm
6.Short Needle:H62 brass band Y1 = 0.38mm
7.Contact sheet:H65 brass band TM = 0.3mm
