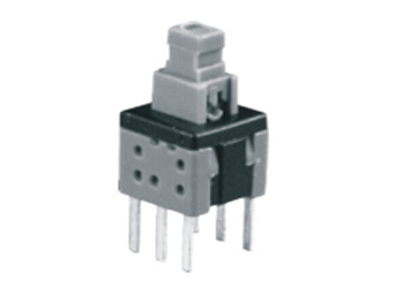

Push Button Switches

  • Model: KLS7-P5.8x5.8-1-A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical:
1.Rated load:36V 0.2A
2.Contact Resistance:≤30mΩ
3.Insulation Resistance:≥100MΩ
4.Withstand Voltage:AC250V(50Hz)/min
5.Actuating Force:260±30g
6.Electrically Life:5000 cycles Min.
7.Environment temperature:-40ºC~+70ºC

Materials:
1. Cover: nylon, gray
2. Base: nylon and brass
3. Axis: Poly potassium aldehyde, white
4. Spring: stainless steel wire, black
5. Hook: stainless steel needle, silver
6. retainer: 0.045mm composite silver phosphor bronze
