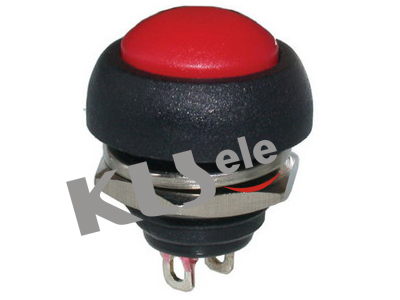

Push Button Switch

Model: KLS7-PBS-010
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Push Button Switch
Electrical:
Rating: 3A 125V AC ,1A 250V AC
Contact resistance: 20mΩ Max
Insulation resistance: 100MΩ/500VDC Min
Withstanding Voltage: AC1000V/1Min
Operating Temperature: -25ºC~+85ºC
Electrical life: 50000 Cycles

PDF

KLS7-PBS-010.pdf
