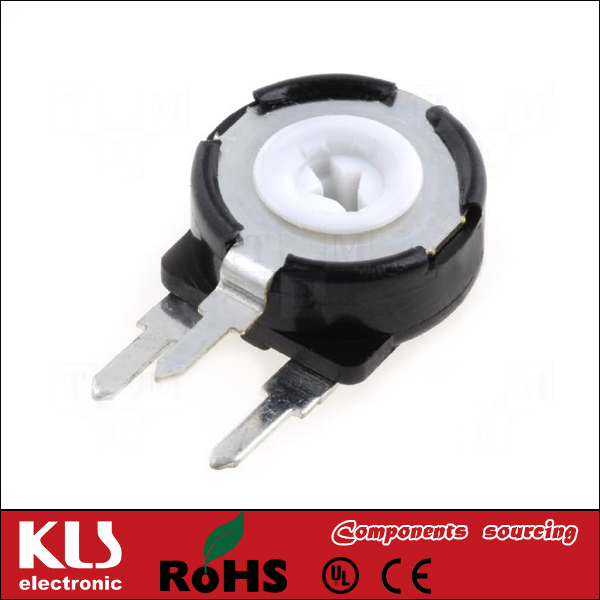

PT6 Trimmer Potentiometer

  • Model: KLS4-PT6
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Trimmer Potentiometer With PT6 Type
FEATURES                                                                                                                                                                                            Carbon resistive element.
Dust proof enclosure.
Polyester substrate.
Also upon request:
*Wiper positioned at 50% or fully clockwise
* Supplied in magazines for automatic insertion
* Long life model PT-6…E (10,000 cycles)
*Without crimping model. PT-6…SC
* Housing available in self extinguishable plastic (UL  94V-0 )

MECHANICAL SPECIFICATIONS
Mechanical Rotation angle: 235°±5°
Electrical Rotation angle: 200°±20°
Torque: 0.2 to 2 Ncm.(0.3 to 2.7 in-oz)
Stop torque: > 4 Ncm. (> 5.6 in-oz)
Long life: 10000cycles

ELECTRICAL SPECIFICATIONS
Range of value:220Ω≤Rn≤5MΩ (Decad.1.0-2.0-2.2-2.5-4.7-5.0)
Tolerance: 220Ω ≤Rn ≤1MΩ ±20% ;
1MΩ≤Rn≤5MΩ ±30%
Max.voltage:  100 VDC(lin)     50VDC(no lin)
Rated Power: 0.1W(lin)          0.05W( no lin)
Taper: Lin;log;alog
Residual resistance:  ≤5‰  Rn(3Ω  min)
Equivalent noise resistance: ≤3%  Rn(3Ω  min)
Operating temperature:  -25°C~+70°C
