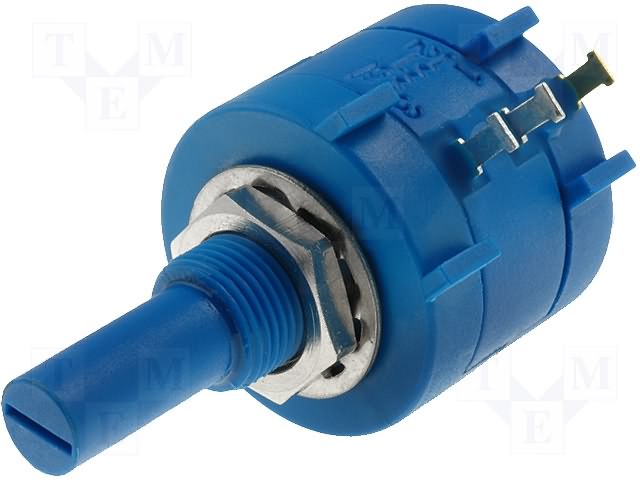

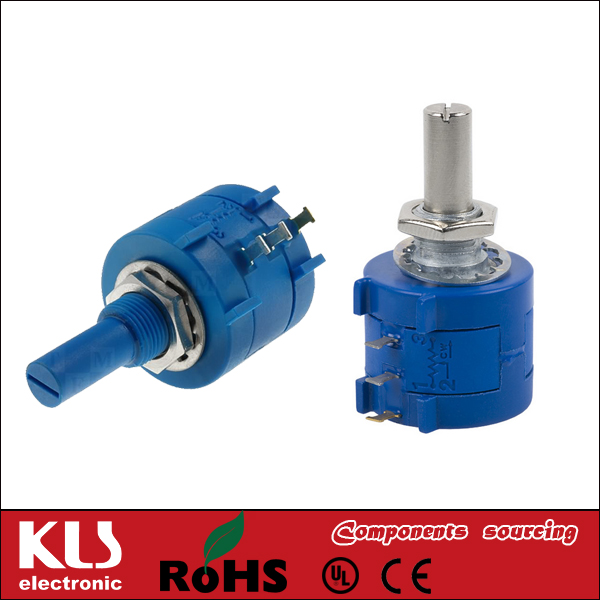

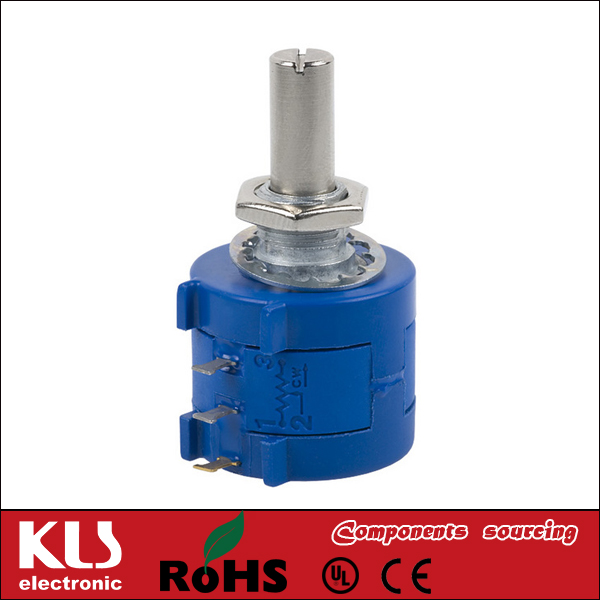

Precision Multiturn Wirewound Potentiometer With 3590 Type

Electrical Characteristics
Standard Resistance Range: 100~100KΩ
Resistance Tolerance: ±5%
Independent Linearity: ±0.5%
Effective Electrial Travel: ≥3600°±10°
Treninal Resistance: ≤0.2% or 5Ω
Noise: ≤3%R or 5Ω
Insulation Resistance: R≥1GΩ
Withstand Voltage: 101.3kPa 710V, 8.5kPa 470V

Environment Characteristics
Rated Power (Max Voltage: 315V): +70 ℃ 2W, +125 ℃ 0W
Operating Temperature: -55 ℃ ~ +125 ℃
Temperature Coefficient: ± 100ppm / ℃
Temperature Variation: △ R ≤ 2% R, △ (Uab / Uac) ≤ ± 1%
Vibration: 390m/s², 4000 times △ R ≤ ± 1% R
Collision: 10 ~ 500Hz, 0.75mm, or 98m/s², 6h,△ R ≤ ± 1% R, △ (Uab / Uac) ≤ ± 2%
Climate Category: △ R ≤ 3% R, R₁ ≥ 100MΩ
Electrical Endurance at 70 ℃: 2W, 1000h, R ≤ ± 3% R
Mechanical Endurance: 10000cycles, △ R ≤ ± 3% R
Steady Damp-Heat: △ R ≤ ± 3% R, R₁ ≥ 100MΩ

Physical Characteristics
Total mechanical travel: ≥ 3600 ± 10 °
Staring torque: ≤ 36mN . m
Standard packaging:10PCS/BOX,20PCS/BOX
