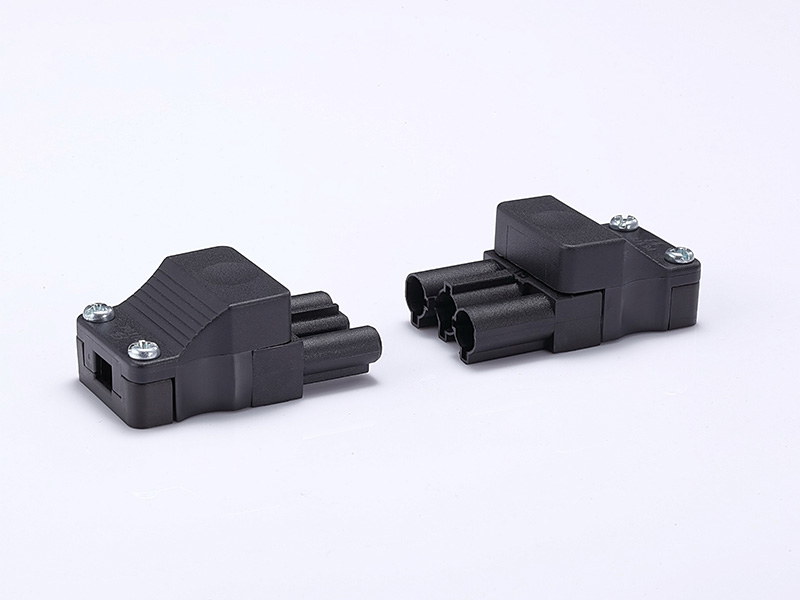

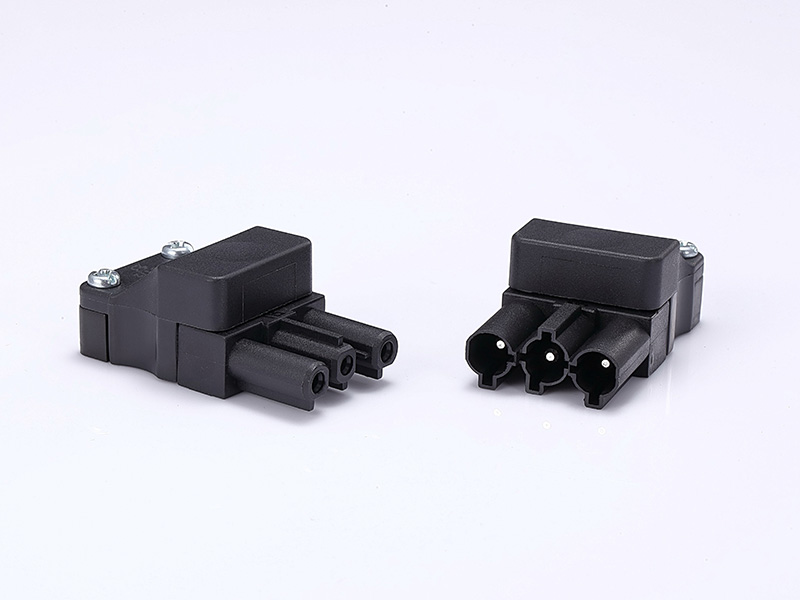

Pluggable connectors

  • Model: KLS2-3238
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical :
Rated Voltage: 250V(IEC/EN ) / 600V(UL)
Rated Current: 16A IEC/EN
Cross Section(IEC EN/UL)
Solid conductor: 0.75-1.5mm² / 16-18AWG
Stranded conductor: 0.75-1.5mm² / 16-18AWG
Flexible conductor: 0.75-1.5mm² / 16-18AWG

Materials
Insulation Materials: Polyamide 66,Black,UL 94V-2
Contact: Brass,Nickel Plated
Screw: M3, SteelZinc Plated
Number of poles: 3 or 4 or 5 poles
Strip length : 7mm
Protection Degree: IP30
Operating Temperature: 90°C
