Order Information
KLS2  – 6310 DS – 12P – 9  S

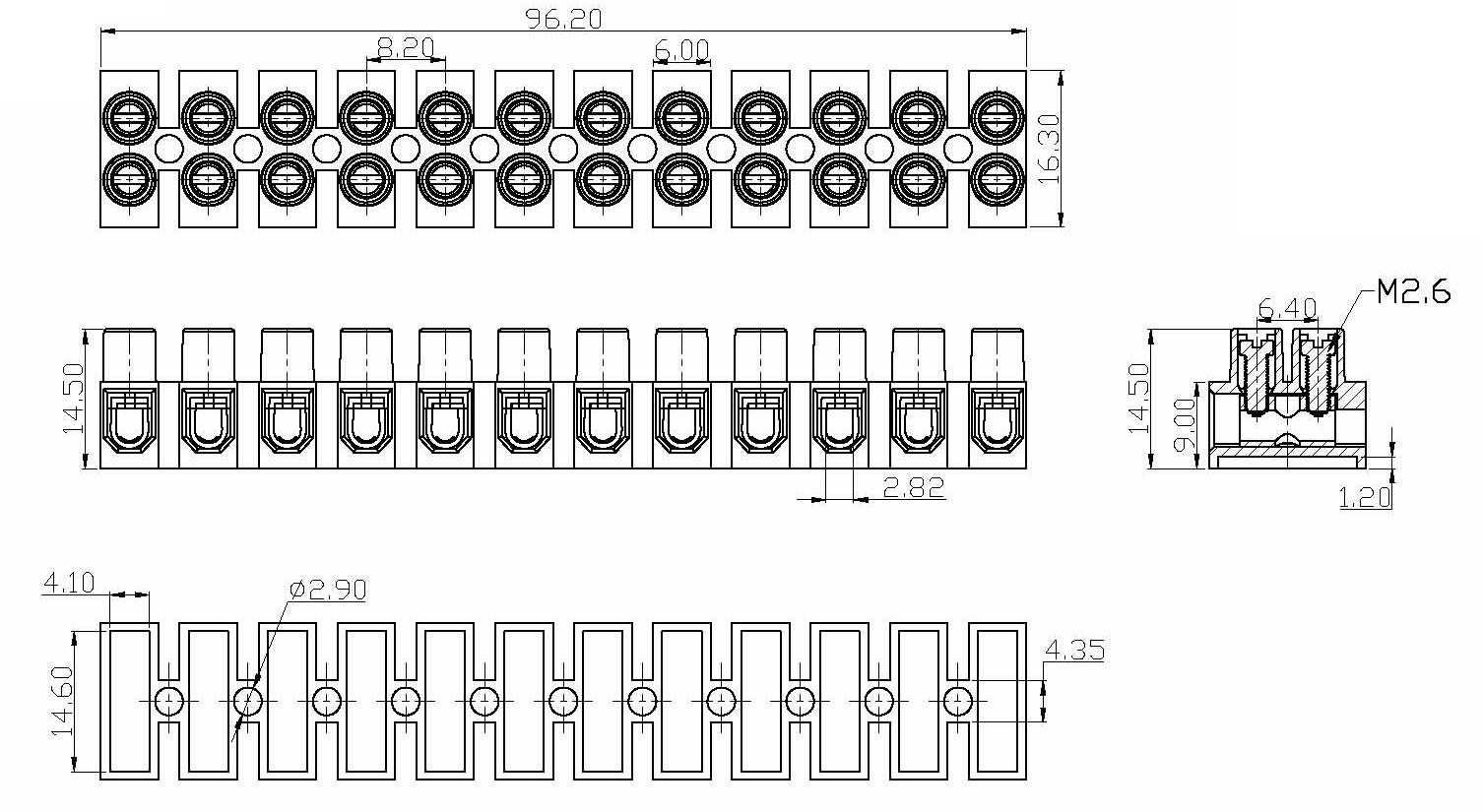

6310: Pitch 8.20mm with H1.2mm
DS:    囗: Without shrapnel       DS: With Shrapnel
12P:  Pin Number
9:      White Color
S:      Slot Serew

Material:
Screw: M2.6 Steel, any Zinc plated
Terminal: Steel, Ni plated
Housing: PA66, UL94V – 2

Electrical:
Rated Voltage:    450V
Rated current:     17.5 A
Wire Range:        1.5 mm²

Mechanical:
Temperature Range: – 30 ℃ ~ + 105 ℃
Strip length: 5.0 mm
