Order Information
KLS2  – 6812 DS – 12P – 9  S

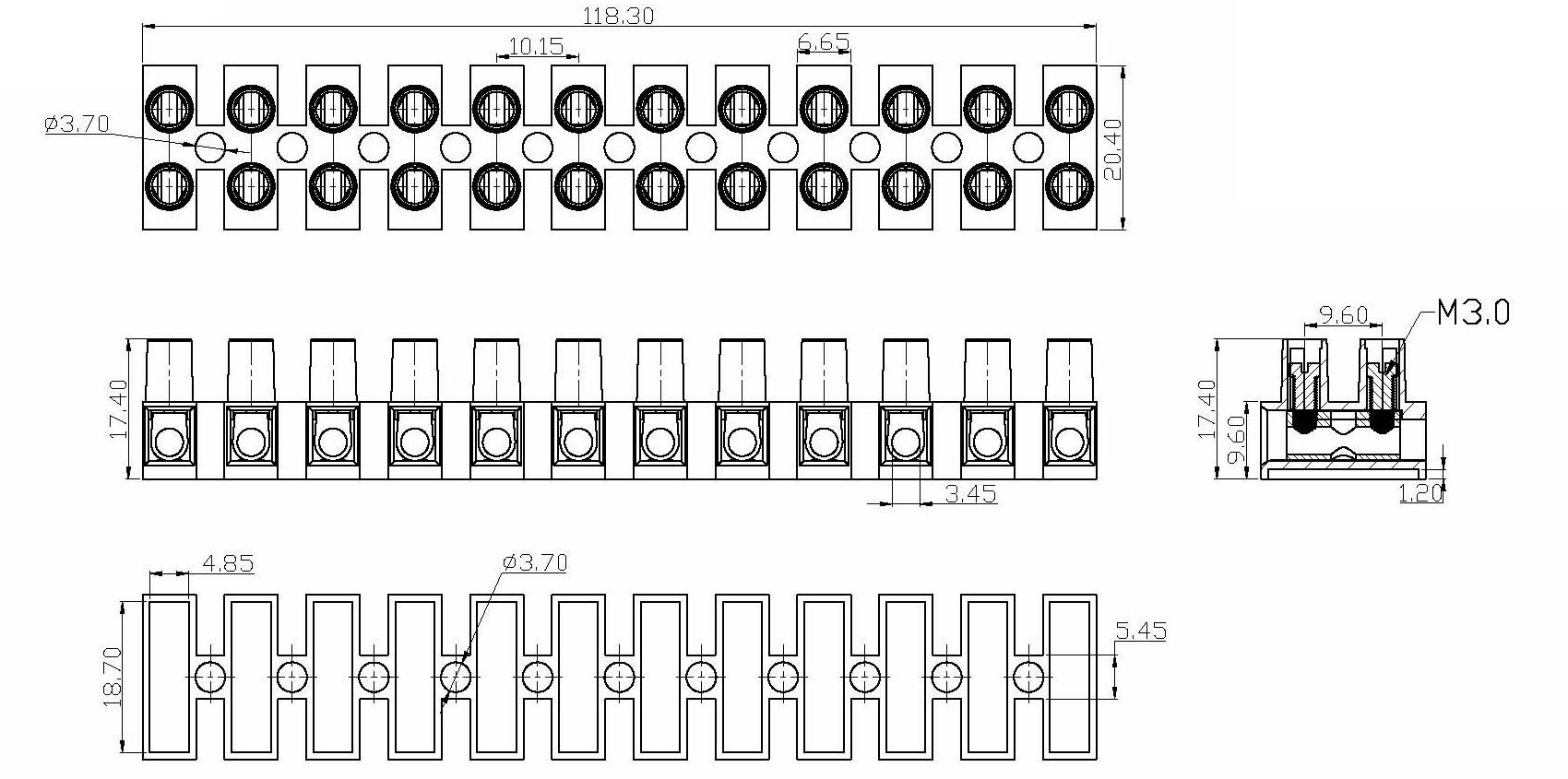

6812: Pitch 10.15mm with H1.2mm
DS:    囗: Without shrapnel       DS: With Shrapnel
12P:  Pin Number
9:      White Color
S:      Slot Serew

Material:
Screw: M3 Steel, any Zinc plated
Terminal: Copper alloy, Ni plated
Housing: PA66, UL94V – 2

Electrical:
Rated Voltage:    450V
Rated current:     24 A
Wire Range:        2.5 mm²

Mechanical:
Temperature Range: – 30 ℃ ~ + 105 ℃
Strip length: 6.5 mm
