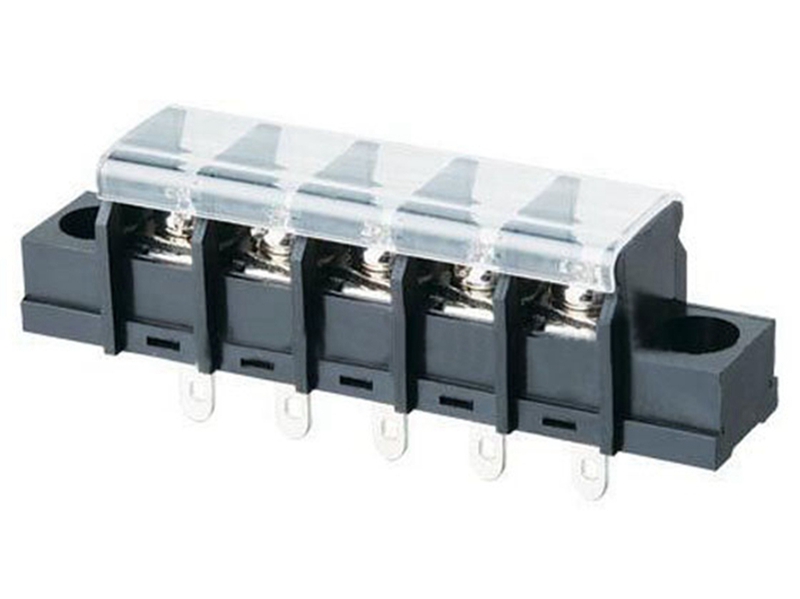

Pitch 9.50mm with Mount Hole Barrier Terminal Blocks
- Product Details
Electrical:
Voltage rating : 300V
Current rating : 20A
Contact Resistance: 20mΩ
Insulation Resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/Min
Wire range: 12-22AWG 4.0mm2
Operation temperature : -40ºC to+105ºC
Torque : 12.24kgf-cm/10.6Lbin
Material:
Housing: PA66 UL94V-0
Terminal: Brass,Tin plated
Screws: M4 Steel Nickel Plated
