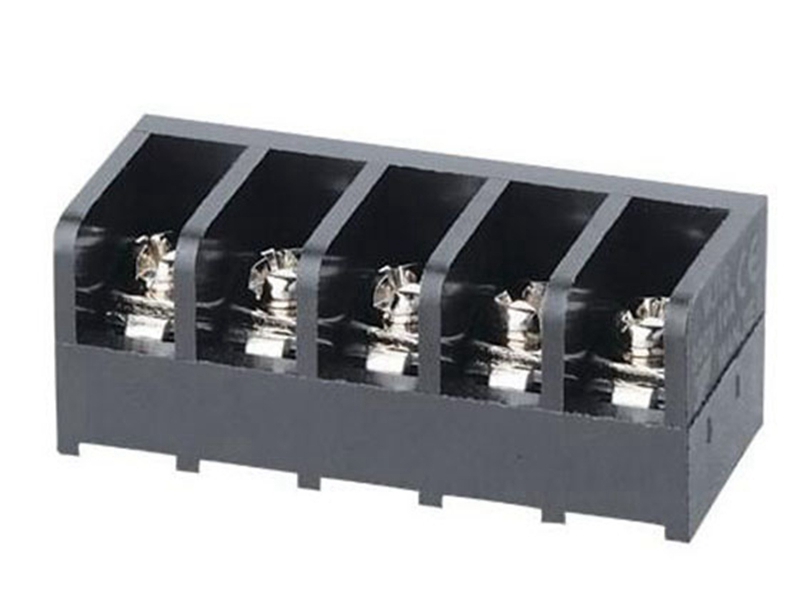

Pitch 6.35mm Barrier Terminal Blocks
- Product Details
Electrical:
Voltage rating : 300V
Current rating : 10A
Contact Resistance: 20mΩ
Insulation Resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/Min
Wire range: 22-16AWG 1.5mm2
Operation temperature : -40ºC to+105ºC
Torque : 5.1kgf-cm/4.43Lbin
Material:
Housing: PA66 UL94V-0
Terminal: Brass,Tin plated
Screws: M2.5 Steel Nickel Plated
