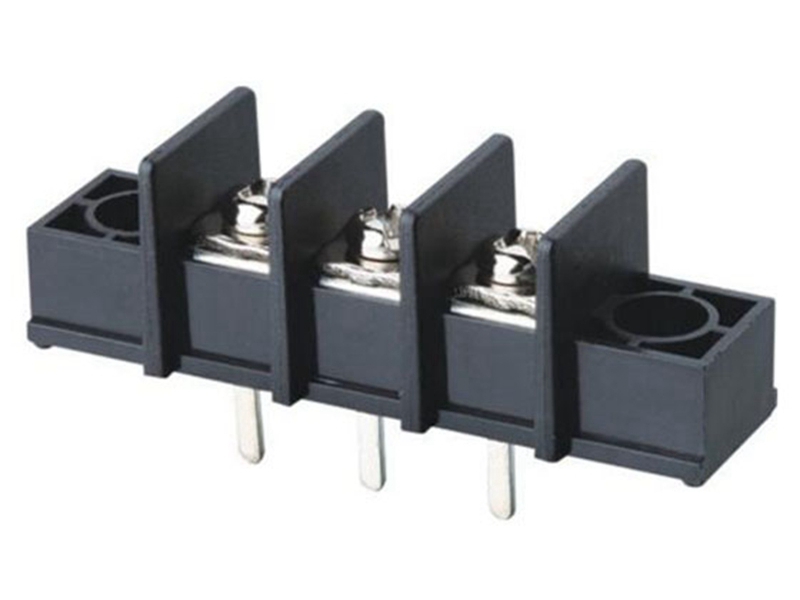

Pitch 11.0mm with Mount Hole Barrier Terminal Blocks

  • Model: KLS2-65A-11.0
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical:
Voltage rating : 300V
Current rating : 20A
Contact Resistance:    20mΩ
Insulation Resistance: 500MΩ/DC500V
Withstanding Voltage:  AC2000V/Min

Wire range:     12-22AWG     4.0mm2
Operation temperature : -40ºC to+105ºC
Torque : 12.24kgf-cm/10.6Lbin

Material:
Housing:  PA66 UL94V-0
Terminal:  Brass,Tin plated
Screws:   M4 Steel Nickel Plated
