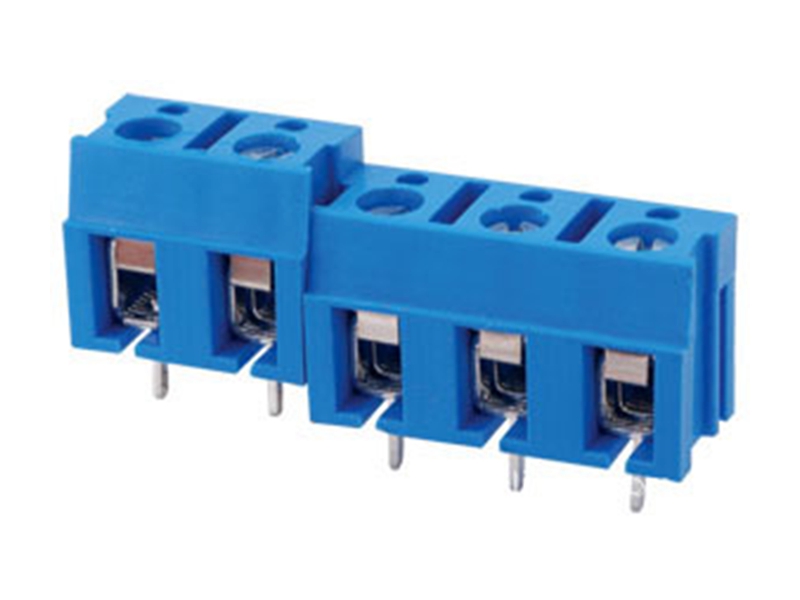

PCB Terminal block 7.5mm Pitch
- Product Details
Electrical:
Rated voltage: 250V
Rated current:16A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2200V/1Min
Wire range:22-14AWG2.5mm²
Material:
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Strip length: 5~6mm
