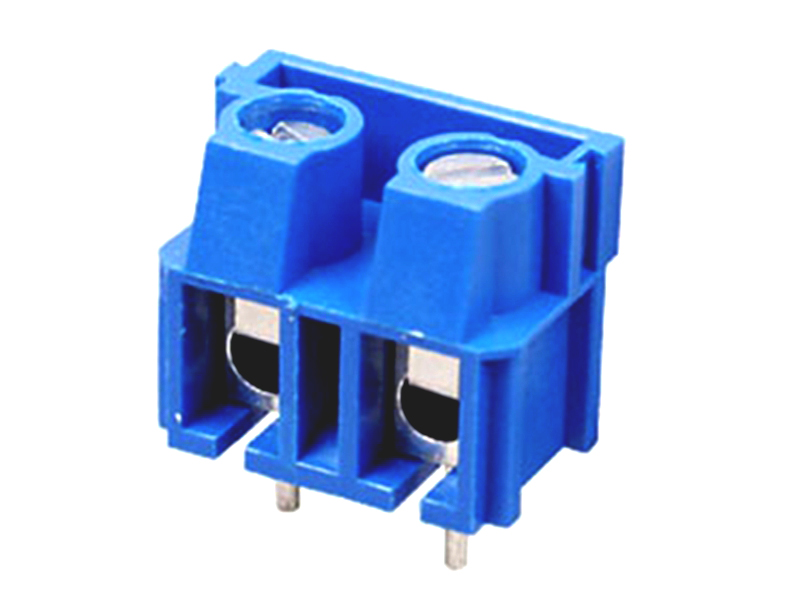

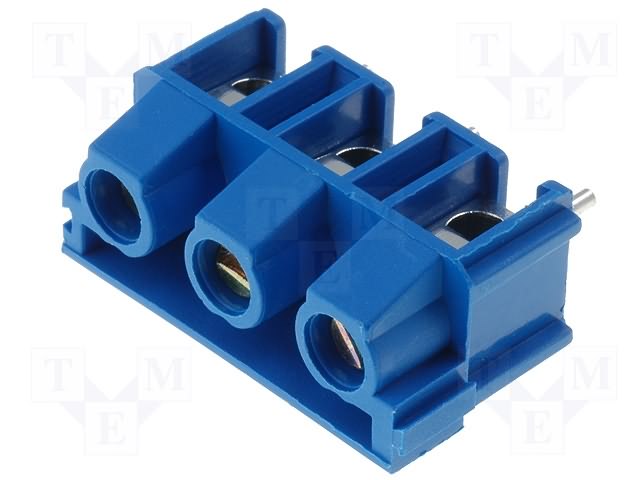

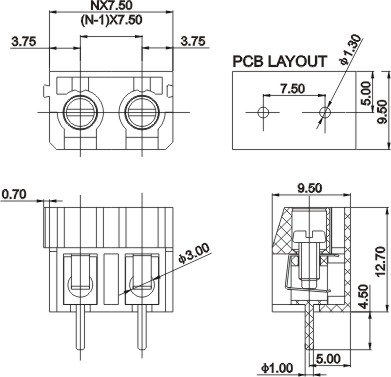

7.50mm Pitch PCB Terminal Block

Electrical:
Rated voltage: 300V
Rated current: 16A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC15000V/1Min
Wire range: 22-14AWG 2.5mm²

Material:
Screws: M3 steel Zinc plated
Wire guard: phosphor bronze Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT,UL94V-0

Mechanical:
Temp. Range: -30ºC~+120ºC
MAX Soldering:+250ºC for 5 Sec.
Torque: 0.5Nm (4.5lb.in)
Strip length: 4.5-5mm

KLS2-360-7.50.pdf
