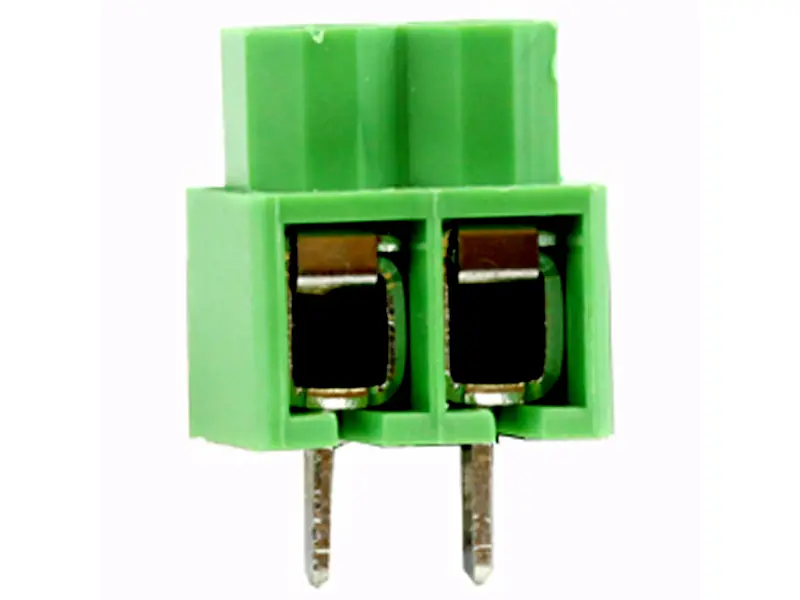

PCB Terminal block 5.0mm Pitch Right Angle

  • Model: KLS2-146R-5.00
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical:
Rated voltage:300V
Rated current:20A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Wire range:26-12AWG2.5mm²

Material:
Screws: M2.5steel Zinc plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0

Mechanical:
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque:0.4Nm (10.6lb.in)
Strip length:12~13mm
