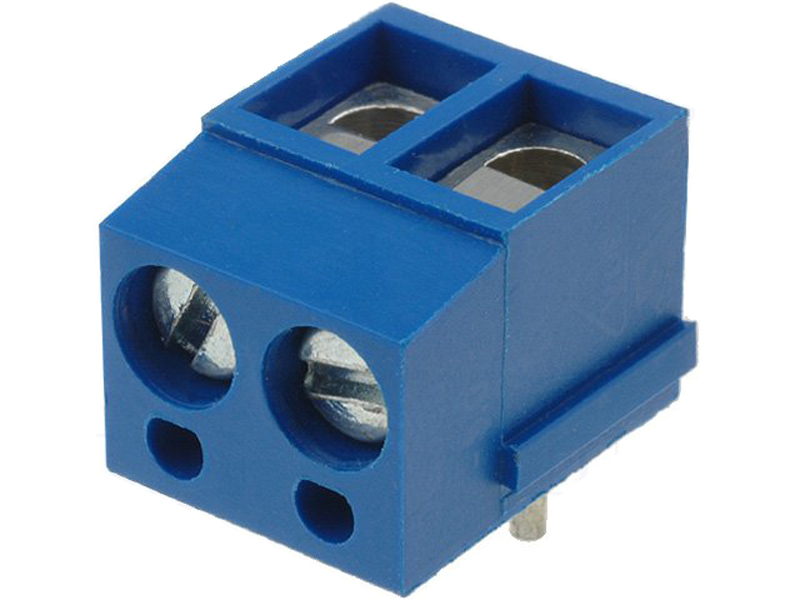

PCB Terminal block 5.0mm Pitch Right Angle

  • Model: KLS2-300R-5.00
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Screw:         M3.0, steel,Zn plated
Cage:           Phosphor Bronze, Nickel plated
Pin header:  Brass, Tin plated
Housing:      PA66, UL94V-0,Blue

Electrical:
Rated voltage:  250V
Rated current:  16A
Wire range:      22~14AWG  1.5mm²
Contact Resistance: 20 m Ω
Insulation resistance:  500MΩ/DC500V
Withstand voltage:      AC2000V / 1 min

Mechanical:
Temp. Range:   -30 ° C ~ + 105 ° C
Soldering:         250 ° C   5Sec.  Max.
Torque:            0.5 N.m (4.43 Lb. in)
Strip length:     4.5~5 mm
