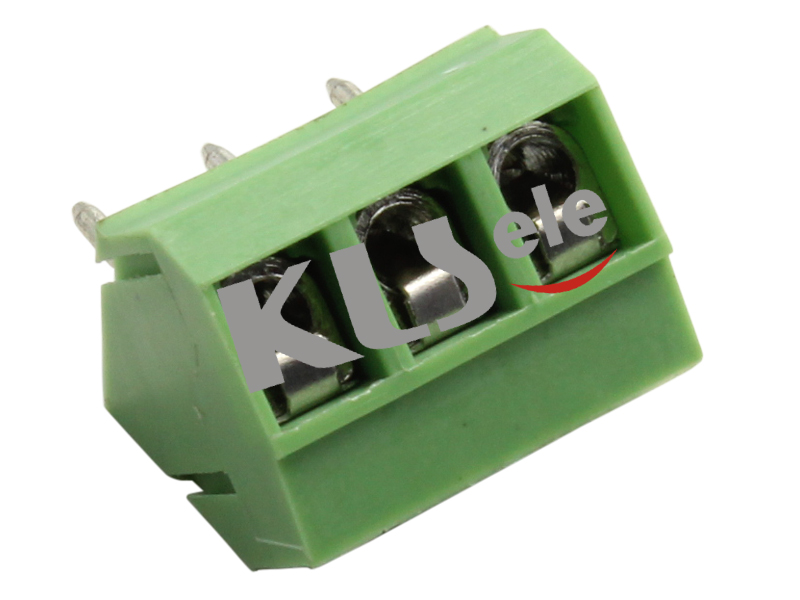

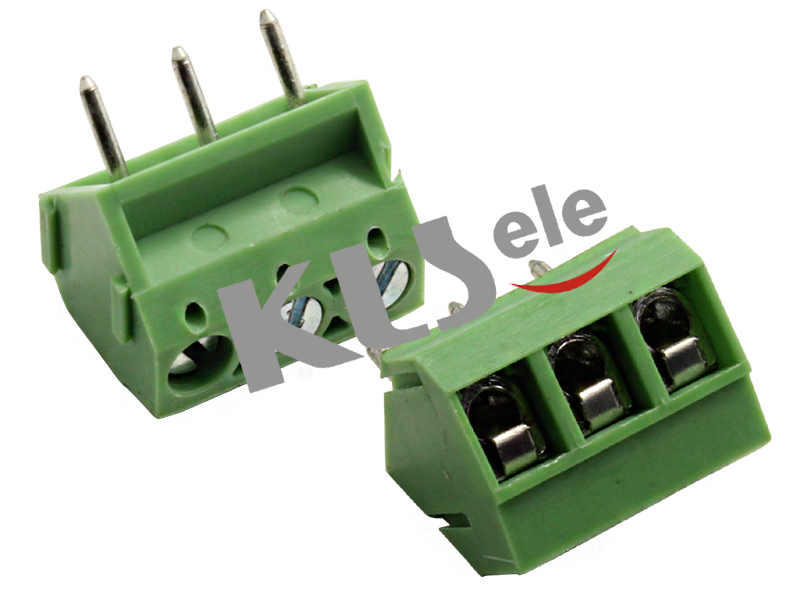

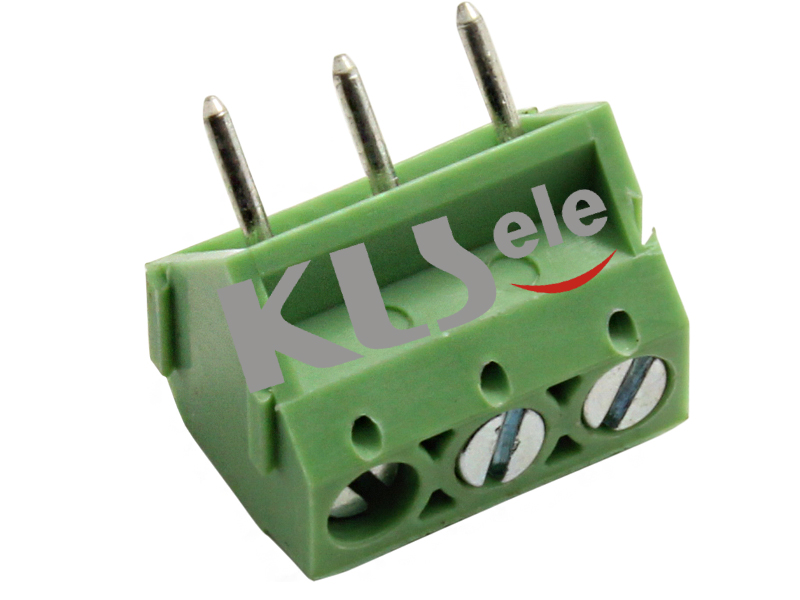

5.00mm Pitch PCB Terminal Block

Order information:
KLS2-104-5.00-XXP-4S
Pitch:5.00mm
XXP:02~12 pins
Color:1-Gray   2-Blue  3-Black  4-Green
Screw:S-Slot screw   C-Crass screw  SC-Composit slot screws（+ -）

Electrical:
Rated voltage: 300V
Rated current:15A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC2000V/1Min
Wire range: 24-14AWG 2.5mm²

Material:
Screws: M2.5 steel Zinc plated
Contact:Brass,Electroless nickel
Pin header: Brass,Tin-plated
Housing: PA66, UL94V-0

Mechanical:
Temp. Range:-40ºC~+105ºC
MAX Soldering: 250ºC for 5 Sec.
Torque: 0.5Nm (4.5 lb.in)
Strip length: 6-7mm
