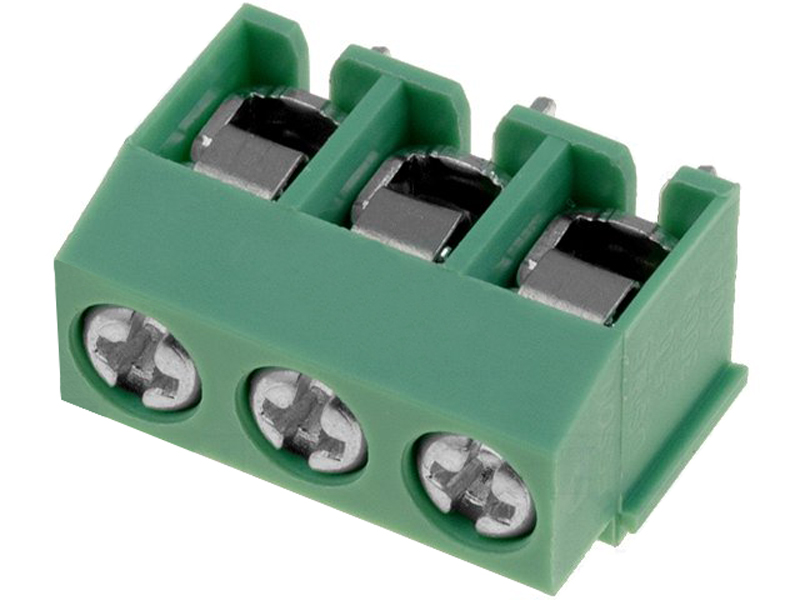

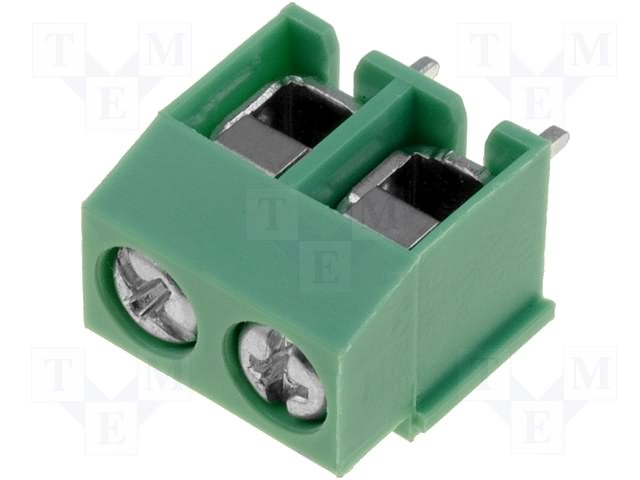

PCB Terminal block 5.0mm Pitch

  • Model: KLS2-126-5.00
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Screw:         M2.5, Steel,Zn plated
Shrapnel:     Stainless steel, Nickel plated
Pin header:  Brass or Steel, Tin plated
Housing:      PA66 , UL94V-0

Electrical:
Rated voltage:   300V
Rated current:    8A
Wire range:      26~14AWG  2.5mm²
Contact Resistance: 20 m Ω
Insulation resistance:  500MΩ/DC500V
Withstand voltage:      AC2000V / 1 min

Mechanical:
Temp. Range:   -40 ° C ~ + 105 ° C
Soldering:       250° C±5° C   for   5S
Torque:            0.4 N.m (3.54Lb. in)
Strip length:     6~7 mm
