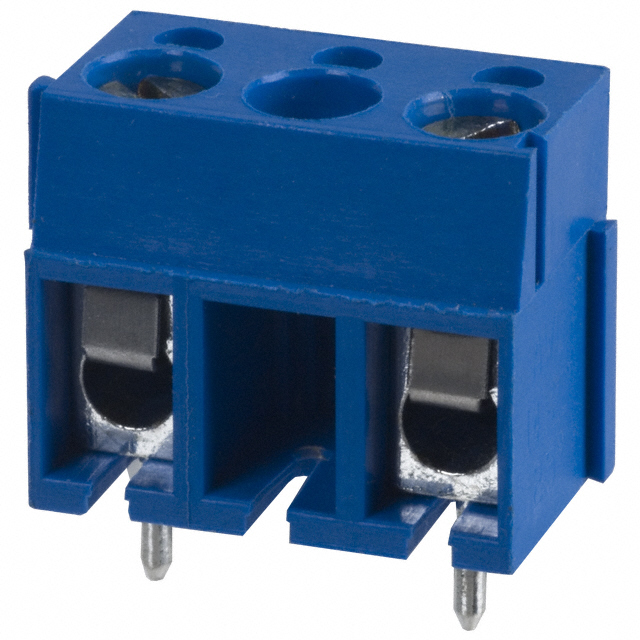

PCB Terminal block 10.0mm Pitch

  • Model: KLS2-300-10.0
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

10.0mm Pitch PCB Terminal Block

Electrical:
Rated Voltage: 300V
Rated Current: 16A
Contact Resistance: 20mΩ
Insulation Resistance: 5000MΩ/1000V
Withstanding Voltage: AC1500V/1Min
Wire Range: 22-14AWG 2.5mm²

Material:
Screws: M3 steel Zinc plated
Wire guard: phosphor bronze Ni plated or stainless steel
Pin header: Brass, Tin plated
Housing: PBT,UL94V-0

Mechanical:
Temp. Range: -30ºC~+120ºC
MAX Soldering: ++250ºC for 5 Sec.
Torque: 0.5Nm (4.5lb.in)
Strip length: 4.5-5mm
