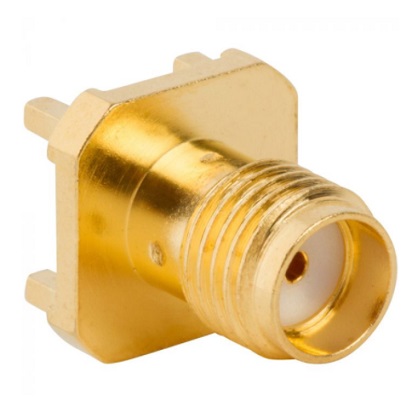

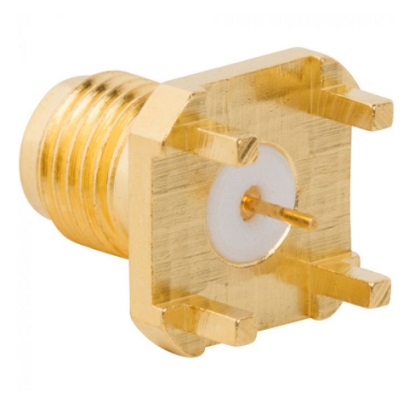

PCB Mount SMA Connector Straight (Jack,Female,50Ω) Amphenol 132401
- Product Details
PCB Mount SMA Connector Jack Female Straight Amphenol 132401
Material:
1.Body:Brass,Gold Plating
2.Insulator:PTFE
3.Center Contact:Beryllium Copper,Gold Plating
Electrical:
Characteristic Impedance:50Ω
Working voltage:335V
Frequency Range:DC-6.0 GHz
Dielectric withstanding voltage:1000V
Contact resistance:Center contact ≦3mΩ / Outer contact:≦2mΩ
Insulation resistance:≧5000MΩ
