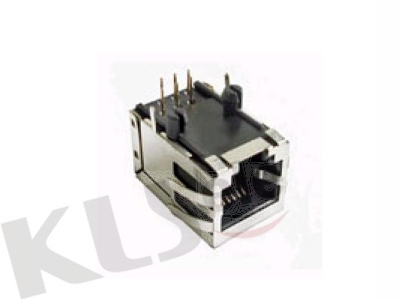

PCB Modular Jack Shield RJ11/RJ12/RJ14/RJ25 (59 SERIES)
MATERIAL:
1.Housing Material: Glass Filled Polyester UL94V-0 PBT, NYLON
2.Housing Color: Black, Gray, Ivory, White or others
3.Contact Material: Phosphor Bronze Φ0.46mm
4.Plating: Gold plating over nickel. Gold plating thickness
1.5u”/ 3u”/ 6u”/ 15u”/ 30u”/ 50u”
5.Shield: 0.23 Thickness Brass with nickel plated

ELECTRICAL:
1.Current Rating: 1.5 Amp
2.Voltage Rating: 125VAC
3.Contact Resistance: 30MΩ Max.
4.Insulation Resistance: 500MΩ Min. @ 500VDC
5.Withstanding Voltage: 1000VAC RMS 50Hz 1 minute

MECHANICAL:
1.Durability : 750 cycles Min.
2.PCB Retention pre-solder : 1 LB MIN

ENVIRONMENTAL:
1.Storage :- 40ºC~+80 ºC
2.Operation:-40ºC~+70ºC

KLS12-320-6P.pdf
