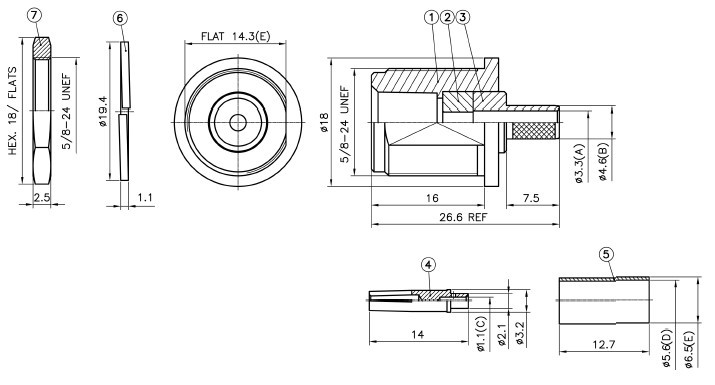

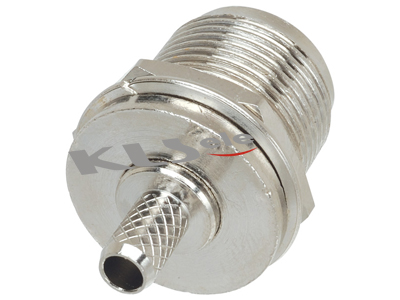

Panel Mount N Cable Connector  With Jack Female Straight Type (Cable Group: RG-58,RG-303,LMR-195;RG-316,RG-174)

Electrical  Specifications
Impedance: 50 Ω
Frequency Range: 0 – 11 GHz
Voltage Rating:1,500 volts peak
VSWR: straight connectors: 1.3 Max. 0-11 GHz
            right angle connectors: 1.35 Max. 0-11 GHz
Dielectric Withstanding Voltage: 2,500 volts rms
Insulation Resistance: 5,000 MΩ Min.
Center Contact Resistance: 1.0 mΩ
Outer Contact Resistance: 0.2 mΩ
RF Leakage: -90 dB Min. at 3 GHz
Insertion Loss:0 .15 dB Max. at 10 GHz
Temperature Range: -65°C to +165°C

Material
Male Contacts: Brass, silver or gold plated
Female Contacts: Phosphorous bronze , silver or gold plated
Other Metal Parts: Brass
Insulators: TFE
Weatherproof Gaskets: Silicone rubber
Crimp Ferrule: Copper
