Outer weld ф5.2×20 Glass Tube Fuse (Quick-acting)
- Product Details
Outer weld ф5.2×20 Glass Tube Fuse (Quick-acting)

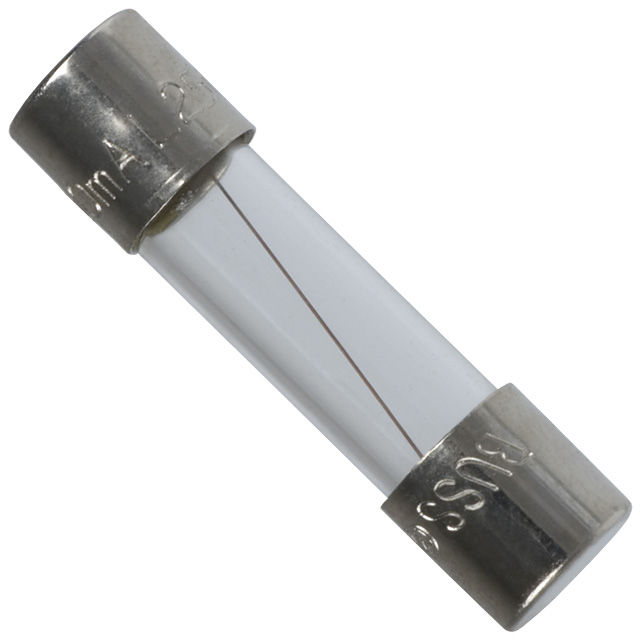

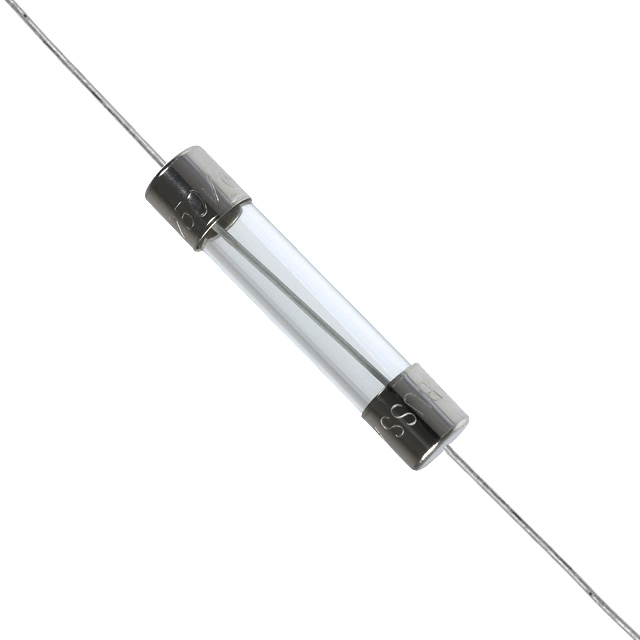

KLS5-1020:With Axial Lead / KLS5-1019:Without Axial Lead
| Rated Current | 2.1 In | 2.75 In | 2.75 In | 4 In | 4 In | 10 In |
| 32mA-100mA | Max 30 min | Min 10 ms | Max 500 ms | Min 3 ms | Max 100 ms | Max 20 ms |
| 100mA-6.3A | Max 30 min | Min 50 ms | Max 2 sec | Min 10 ms | Max 300 ms | Max 20 ms |
| 7A-10A | Max 30 min | Min 50 ms | Max 2 sec | Min 10 ms | Max 300 ms | Max 40 ms |
