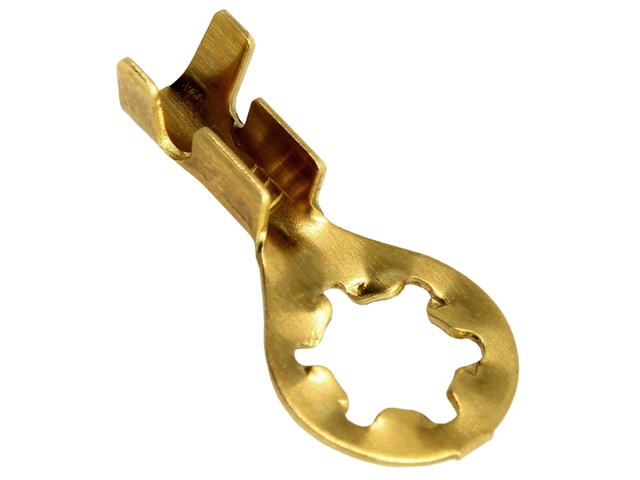

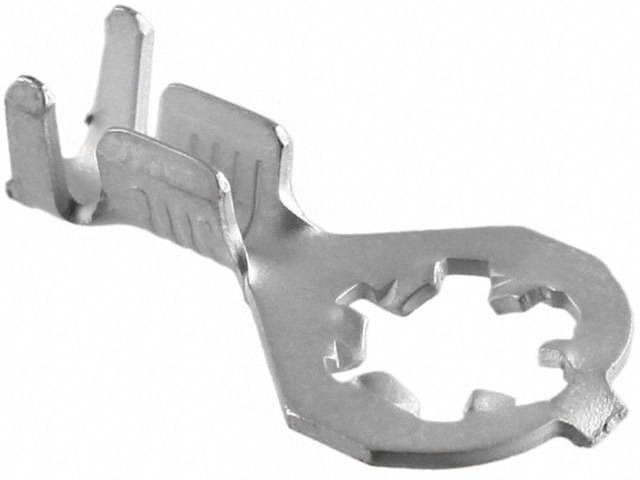

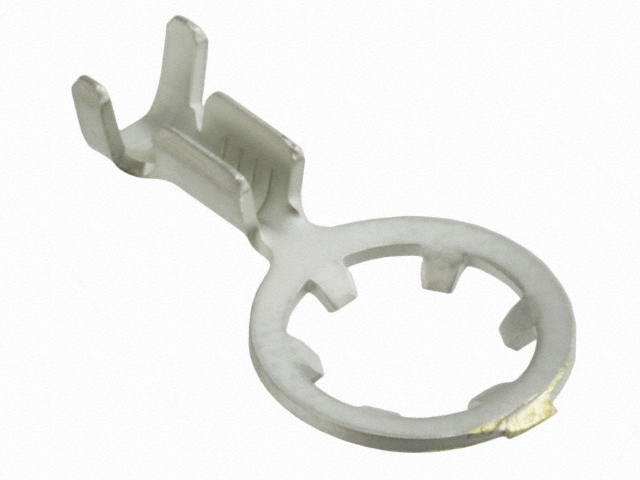

Open Barrel Star Ring Terminal
- Product Details
| P/N | Material | Plating | Dimension(mm) | Wire Range | Q’TY | REMARKS | ||||||||
| D | W | E | L | T | H1 | WS | H2 | IS | (AWG) | REEL | ||||
| L-KLS8-SRD250401 | Brass | Tin | 2.50 | 6.0 | 12.2 | 0.40 | 3.20 | 3.00 | 4.25 | 4.80 | 18~20 | 15000 | ||
| L-KLS8-SRD320401 | Brass | Tin | 3.20 | 7.0 | 8.7 | 16.0 | 0.40 | 3.30 | 3.50 | 4.60 | 4.80 | 16~20 | 7500 | |
| L-KLS8-SRD320501 | Brass | Tin | 3.20 | 7.0 | 8.7 | 16.0 | 0.50 | 3.30 | 3.50 | 4.60 | 4.80 | 16~20 | 7500 | |
| L-KLS8-SRD370601 | Brass | Tin | 3.70 | 9.4 | 11.5 | 20.0 | 0.60 | 4.20 | 4.00 | 5.30 | 5.50 | 16~20 | 5000 | |
| L-KLS8-SRD430601 | Brass | Tin | 4.30 | 10.0 | 13.1 | 21.2 | 0.60 | 4.20 | 3.70 | 5.90 | 5.70 | 16~20 | 5000 | |
| L-KLS8-SRD430501 | Brass | Tin | 4.30 | 8.6 | 11.5 | 19.5 | 0.50 | 3.40 | 3.50 | 5.10 | 5.00 | 16~20 | 5000 | |
| L-KLS8-SRD430401 | Brass | Tin | 4.30 | 8.6 | 11.5 | 19.5 | 0.40 | 3.40 | 3.50 | 5.10 | 5.00 | 16~20 | 5000 | |
| L-KLS8-SRD430402 | Brass | Tin | 4.30 | 8.6 | 11.5 | 19.5 | 0.50 | 4.10 | 4.30 | 4.90 | 7.40 | 14 | 5000 | |
| L-KLS8-SRD510501 | Brass | Tin | 5.10 | 9.8 | 11.0 | 19.3 | 0.50 | 4.00 | 3.30 | 5.00 | 5.20 | 18~20 | 5000 | |
