OEM Automotive Connectors / 3.50mm Pitch Male Pin Header Connector

  • Model: KLS1-207LA
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

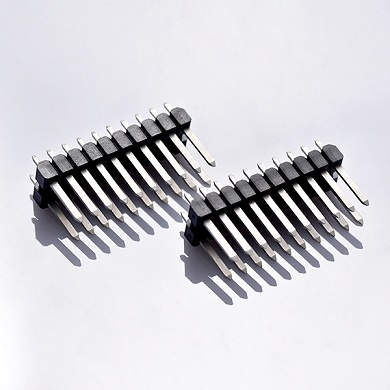

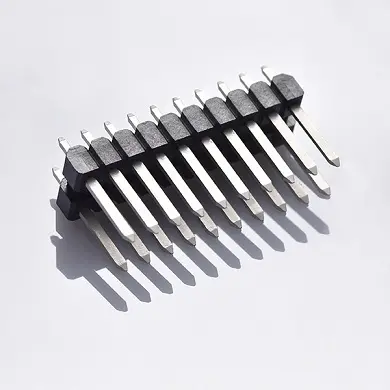

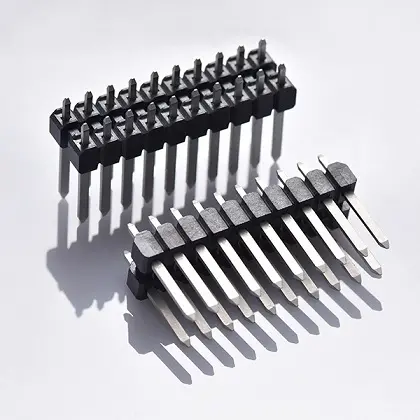

3.50mm Pitch Male Pin Header Connector

Material:
Insulator:High Temp. Plastic
LCP+30%G.F  UL94V-0),Black.
Contact: Brass
Plating:Tin-plating

Electrical Characteristics:
Current Rating: 7A AC/DC
Voltage Rating: 500V AC/DC
Contact Resistance: 20mΩ Max
Insulator Resistance: 1000MΩ Min
Withstand Voltage: 600V  AC/DC

Mechanical:
Operating Temperature: -40°C~+105°C
