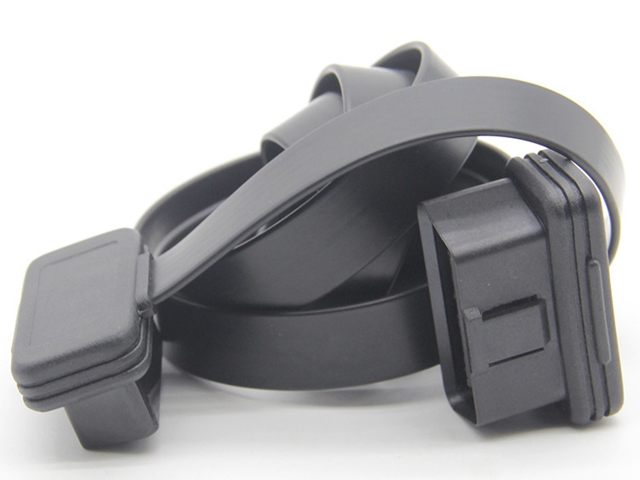

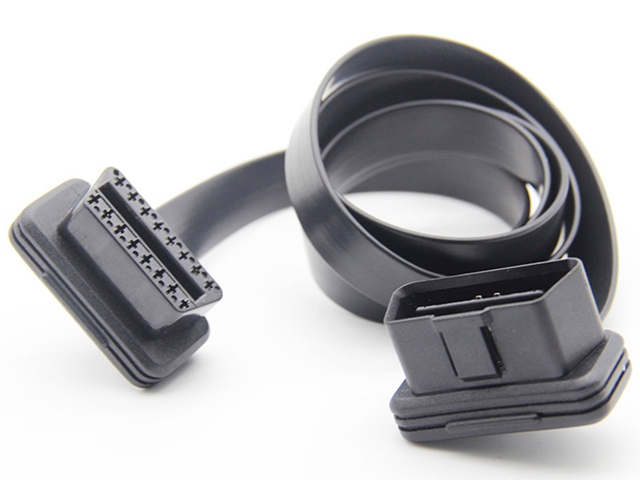

Material:
1.Wire: UL813 26AWG*16C,Black Jacket Flat Wire
2.Connector: OBD II 16P Female,Pins Nickel,Black Insulation
3.Connector: OBD II 16P Male,Pins 1.8mm Nickel,Black.
4.Molding: PVC Red, Hardness:50P
5.Tie: Black Tie

Material:
Housing: ABS,UL94V-0,Color Black
SR: Neylon,UL94V-0,Color Black
Terminal: Brass,Nickel plated

Electrical Characteristics:
Dielectric Strength: 1000V AC/1 Minute
Contact Resistance: 100mΩ Max
Insulator Resistance: 500VDC,100MΩ Min

Rateing and Application Wire:
Rated Voltage: 30V Max
Rated Current: 5Amps
Ambient Temperature Range: -40℃ ~ +85℃

KLS1-OBDII-AF01.pdf
