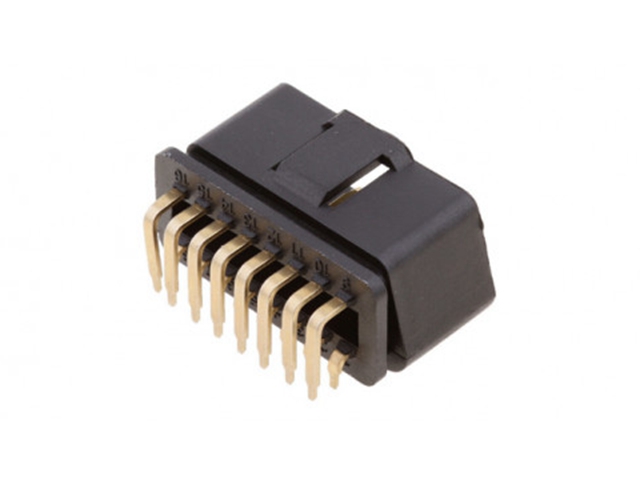

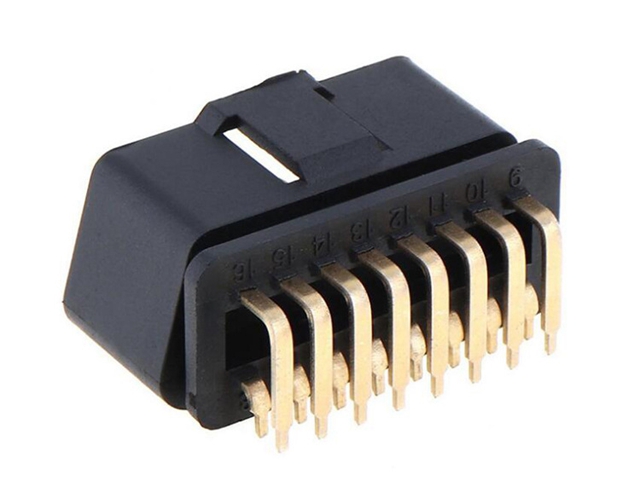

OBD II 16P Male Socket connector R/A

Material:
1.Housing: PBT,UL94V-0,Color Black
2.The Pin 4 & Pin 5 Are 8.5mm High Out of the Plastic All of the rest pins are 6.7mm . The pin 0.55*1.5
3.General Tolerance: ±0.30mm
4.Needle: Brass,under plate nickel
5.Electroplating: gold-plated,gold-plated thickness:3u”,nickel bottom 30u”

Electrical Characteristics:
Dielectric Strength: 1000V AC/1 Minute
Contact Resistance: 100mΩ Max
Insulator Resistance: 500VDC,100MΩ Min

Rateing and Application Wire:
Rated Voltage: 30V Max
Rated Current: 5Amps
Ambient Temperature Range: -40℃ ~ +85℃

KLS1-OBDII-16-R.pdf
