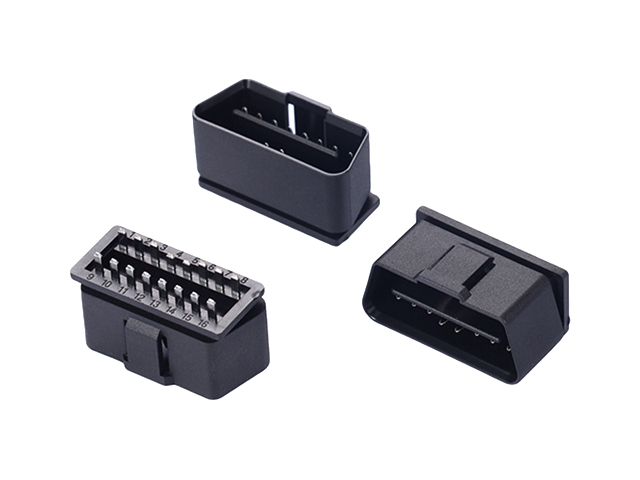

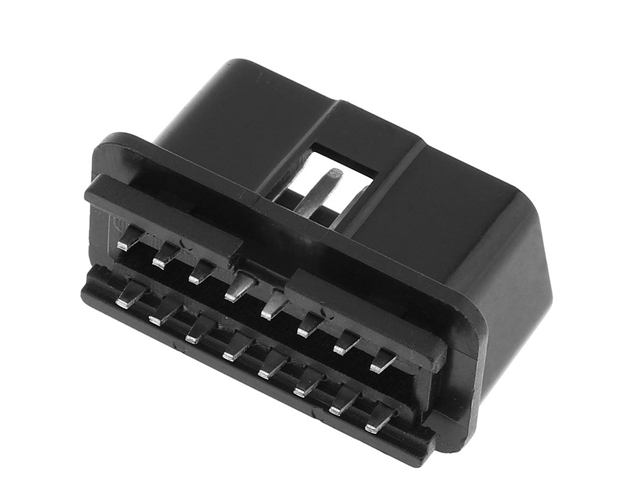

OBD II 16P Male Socket connector

Material:
Housing: PC+ABS (7:3),UL94V-0,Natural+Masterbatch 4&5
Pin: Long needle 9.2mm,Other Pin 7.2mm Pin T=0.8mm,W=1.8mm,L=19.25mm,Tip Width=1.55mm
Terminal: Brass,Nickel plated(30u”)

Electrical Characteristics:
Dielectric Strength: 1000V AC/1 Minute
Contact Resistance: 100mΩ Max
Insulator Resistance: 500VDC,100MΩ Min

Rateing and Application Wire:
Rated Voltage: 30V Max
Rated Current: 5Amps
Ambient Temperature Range: -40℃ ~ +85℃

KLS1-OBDII-16M001.pdf
